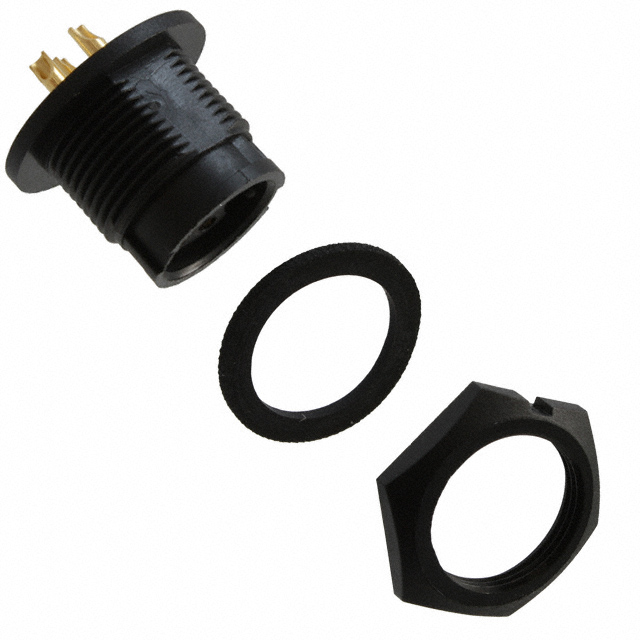

7282-3SG-300

Active

Conxall/Switchcraft

CONN RCPT FMALE 3P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT FMALE 3P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	7282-3SG-300

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Ingress Protection	Weathertight
Mounting Feature	Bulkhead - Front Side Nut
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	600 V

Part	Voltage Rating	Fastening Type	Mounting Feature	Shielding	Connector Type	Contact Material	Backshell Material, Plating	Color	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Ingress Protection	Applications	Primary Material	Current Rating (Amps)
Conxall/Switchcraft 7282-3SG-300	600 V	Bayonet Lock	Bulkhead - Front Side Nut	Unshielded	Receptacle Female Sockets	Brass	Nylon Polyamide (PA)	Black	Keyed	-40 °C	115 °C	Gold	Weathertight	Automotive Communication Systems Instrumentation	Plastic	Varies by Wire Gauge
