56SD36-01-1-AJN
ActiveGrayhill Inc.

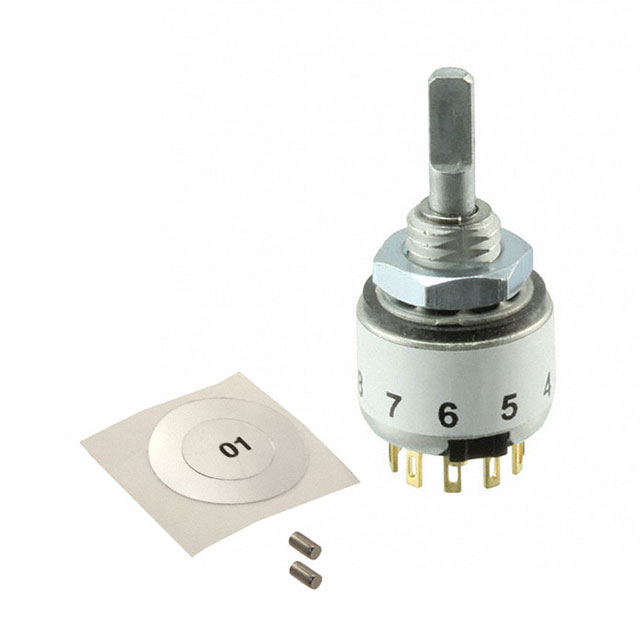

SWITCH ROTARY SP10T 10 FLATTED SHAFT SOLDER LUG 0.2A 115VAC 30VDC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
56SD36-01-1-AJN
ActiveGrayhill Inc.
SWITCH ROTARY SP10T 10 FLATTED SHAFT SOLDER LUG 0.2A 115VAC 30VDC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 56SD36-01-1-AJN |
|---|---|
| Actuator Length [x] | 9.53 mm |
| Actuator Type | Flatted |
| Actuator Type [diameter] | 3.17 mm |
| Angle of Throw | 36 ° |
| Circuit per Deck | SP10T |
| Contact Finish | Silver |
| Contact Material | Brass |
| Contact Timing | Non-Shorting |
| Current Rating (Amps) | 200 mA |
| Depth Behind Panel [z] | 12.19 mm |
| Features | Shaft and Panel Sealed |
| Index Stops | Adjustable |
| Number of Decks [custom] | 1 |
| Number of Poles per Deck | 1 |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 115 V |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 25.41 | |
| 5 | $ 21.82 | |||
| 10 | $ 20.45 | |||
| 25 | $ 18.74 | |||
| 50 | $ 17.55 | |||
| 100 | $ 16.46 | |||
| 250 | $ 15.10 | |||
| 500 | $ 14.81 | |||
Description
General part information
56SD36 Series
Rotary Switch 2 ~ 10 Position SP10T 200mA (AC/DC) 115 VAC Panel Mount
