Q-030200005072i

Active

Amphenol Custom Cable

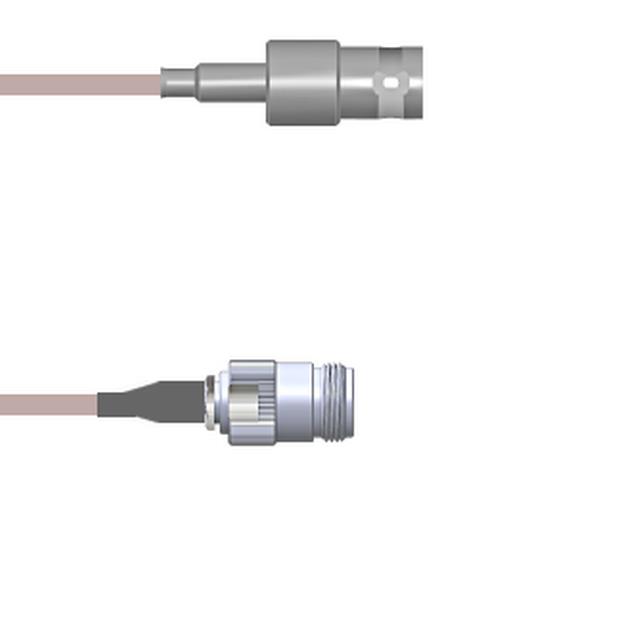

CBL ASSY BNC-NTYPE JACK-JACK 6'

Deep-Dive with AI

Search across all available documentation for this part.

Q-030200005072i

Active

Amphenol Custom Cable

CBL ASSY BNC-NTYPE JACK-JACK 6'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-030200005072i

1st Connector	BNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	N-Type Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	6 ft
Length	72 in
Length	1.8 m
Overall Impedance	50 Ohms
Style	BNC to N-Type

Q-030200 Series

Part	2nd Contact Gender	Length	Length	Length	2nd Connector Mounting Type	Features	2nd Connector	Style	Overall Impedance	1st Connector Mounting Type	Cable Type	Color	1st Contact Gender	Frequency - Max [Max]	1st Connector
Amphenol Custom Cable Q-0302000032.5M	Female	8.2 '	98.4 in	2.5 m	Free Hanging (In-Line)	Shielded	N-Type Jack	BNC to N-Type	50 Ohms	Free Hanging (In-Line)	RG-174	Black	Female	4 GHz	BNC Jack
Amphenol Custom Cable Q-030200005060i	Female	5 ft	5 '	1.5 m	Free Hanging (In-Line)	Shielded	N-Type Jack	BNC to N-Type	50 Ohms	Free Hanging (In-Line)	RG-316	Copper	Female	4 GHz	BNC Jack
Amphenol Custom Cable Q-030200005002M	Female	6.6 ft	78.7 in	2 m	Free Hanging (In-Line)	Shielded	N-Type Jack	BNC to N-Type	50 Ohms	Free Hanging (In-Line)	RG-316	Copper	Female	4 GHz	BNC Jack
Amphenol Custom Cable Q-030200003006i	Female		6 in	152.4 mm	Free Hanging (In-Line)	Shielded	N-Type Jack	BNC to N-Type	50 Ohms	Free Hanging (In-Line)	RG-174	Black	Female	4 GHz	BNC Jack
Amphenol Custom Cable Q-030200005072i	Female	6 ft	72 in	1.8 m	Free Hanging (In-Line)	Shielded	N-Type Jack	BNC to N-Type	50 Ohms	Free Hanging (In-Line)	RG-316	Copper	Female	4 GHz	BNC Jack
Amphenol Custom Cable Q-030200005003M	Female	9.8 '	118.1 in	3 m	Free Hanging (In-Line)	Shielded	N-Type Jack	BNC to N-Type	50 Ohms	Free Hanging (In-Line)	RG-316	Copper	Female	4 GHz	BNC Jack
Amphenol Custom Cable Q-030200005012i	Female		12 "	304.8 mm	Free Hanging (In-Line)	Shielded	N-Type Jack	BNC to N-Type	50 Ohms	Free Hanging (In-Line)	RG-316	Copper	Female	4 GHz	BNC Jack
Amphenol Custom Cable Q-0302000052.5M	Female	8.2 '	98.4 in	2.5 m	Free Hanging (In-Line)	Shielded	N-Type Jack	BNC to N-Type	50 Ohms	Free Hanging (In-Line)	RG-316	Copper	Female	4 GHz	BNC Jack
Amphenol Custom Cable Q-030200005009i	Female		9 "	228.6 mm	Free Hanging (In-Line)	Shielded	N-Type Jack	BNC to N-Type	50 Ohms	Free Hanging (In-Line)	RG-316	Copper	Female	4 GHz	BNC Jack
Amphenol Custom Cable Q-030200005006i	Female		6 in	152.4 mm	Free Hanging (In-Line)	Shielded	N-Type Jack	BNC to N-Type	50 Ohms	Free Hanging (In-Line)	RG-316	Copper	Female	4 GHz	BNC Jack

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 79.26
		25	$ 77.70
		50	$ 76.15
		100	$ 74.59
		250	$ 73.03

Description

General part information

Q-030200 Series

Cable Assembly Coaxial BNC to N-Type RG-316 72.0" (1.8m) 6.0'

Documents

Technical documentation and resources

No documents available
