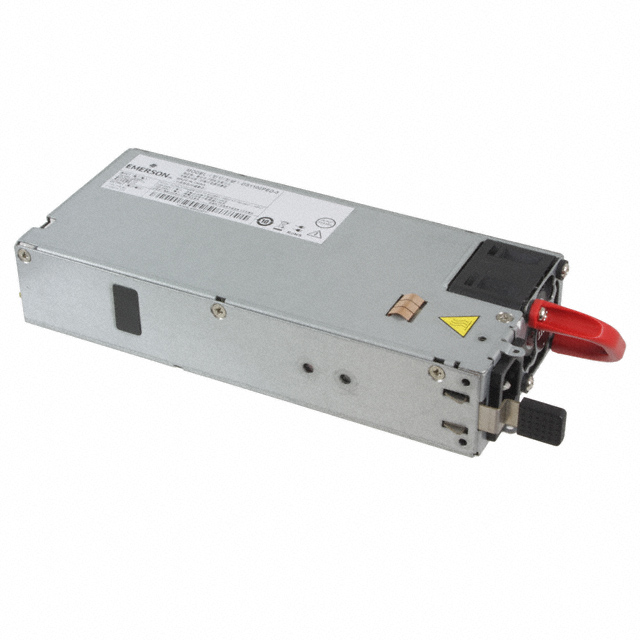

DS1100PED-3

Active

ARTESYN / Advanced Energy

AC/DC POWER SUPPLY SINGLE-OUT 12V 91.76A 1100W 29-PIN

Search across all available documentation for this part.

Active

ARTESYN / Advanced Energy

AC/DC POWER SUPPLY SINGLE-OUT 12V 91.76A 1100W 29-PIN

Technical Specifications

Parameters and characteristics for this part

Specification	DS1100PED-3

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output 1	91.6 A
Efficiency	94 %
Features	I2C Interface, Remote Sense, Hot Swappable, Load Sharing, PMBus™, PFC, Universal Input, Standby Output
Minimum Load Required	True
Mounting Type	Rack Mount
Number of Outputs	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	0 °C
Power (Watts)	1100 W
Size / Dimension [x]	7.74 in
Size / Dimension [x]	196.5 mm
Size / Dimension [y]	3.4 in
Size / Dimension [y]	86.3 mm
Size / Dimension [z]	38.5 mm
Size / Dimension [z]	1.52 in
Type	Front End
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output 1	12 V

Part	Voltage - Input (Max) [Max]	Type	Mounting Type	Power (Watts)	Approval Agency	Current - Output (Max) [Max]	Voltage - Output 1	Efficiency	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Number of Outputs	Voltage - Input (Min) [Min]	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output 1	Features
ARTESYN / Advanced Energy DS1100SDC-3-001	-72 V	Front End	Rack Mount	1100 W	CB CCC CE cUL DEMKO	91.76 A	12 V	90 %	7.74 in	196.5 mm	3.4 in	38.5 mm	86.3 mm	1.52 in	1	-36 V	ITE (Commercial)
ARTESYN / Advanced Energy DS1100SDC-3	-72 V	Front End	Rack Mount	1100 W	CB CCC CE cUL DEMKO	91.76 A	12 V	90 %	7.74 in	196.5 mm	3.4 in	38.5 mm	86.3 mm	1.52 in	1	-36 V	ITE (Commercial)	40 °C	0 °C
ARTESYN / Advanced Energy DS1100SLPE-3		Front End	Rack Mount	1100 W	CB CE		12 V	94 %	11 in	279.4 mm	3.2 in	39.9 mm	81.3 mm	1.57 "	1		ITE (Commercial)			90 VAC	264 VAC	90 A	Hot Swappable I2C Interface Load Sharing PFC PMBus™ Remote Sense Standby Output Universal Input
ARTESYN / Advanced Energy DS1100PED-3		Front End	Rack Mount	1100 W	CE		12 V	94 %	7.74 in	196.5 mm	3.4 in	38.5 mm	86.3 mm	1.52 in	1		ITE (Commercial)	60 °C	0 °C	90 VAC	264 VAC	91.6 A	Hot Swappable I2C Interface Load Sharing PFC PMBus™ Remote Sense Standby Output Universal Input

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	90	$ 362.11

General part information

Front End AC DC Converters 1 Output 12V 90 ~ 264 VAC Input
