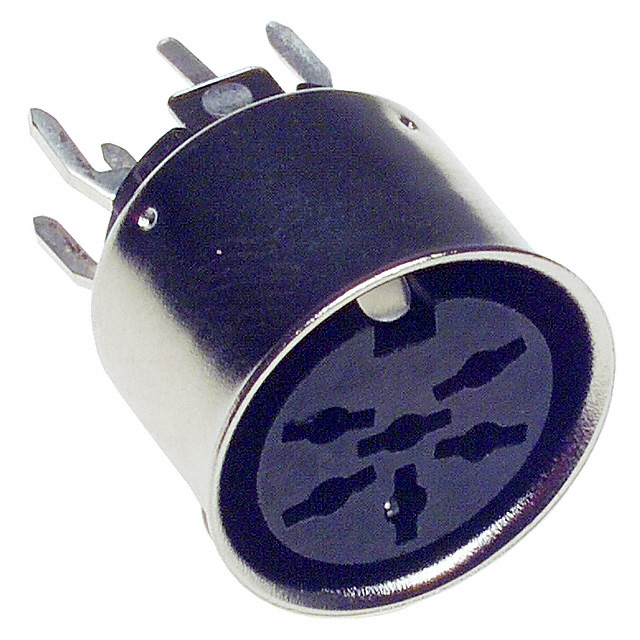

SD-60BV

Active

CUI Devices

CONN RCPT FMALE DIN 6POS SOLDER

Search across all available documentation for this part.

Active

CUI Devices

CONN RCPT FMALE DIN 6POS SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	SD-60BV

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Material	Brass
Fastening Type	Push-Pull
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	6
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Iron Sheet
Shell Size - Insert	DIN (240 Degree)
Shielding	Shielded
Termination	Solder
Voltage Rating	24 VDC

Part	Fastening Type	Shell Material	Shell Finish	Current Rating (Amps)	Color	Termination	Contact Finish - Mating	Contact Material	Voltage Rating	Orientation	Primary Material	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Positions	Insert Material	Shell Size - Insert	Features	Shielding	Material Flammability Rating	Mounting Feature
CUI Devices SD-60J	Push-Pull	Steel	Black Nickel	2 A	Black	Solder	Silver	Brass	100 VAC	Keyed	Metal	Receptacle Female Sockets	-5 °C	110 °C	Free Hanging (In-Line)	6	Polycarbonate (PC)	DIN (240 Degree)	Strain Relief	Unshielded
CUI Devices SD-60BV	Push-Pull	Iron Sheet	Nickel		Silver	Solder		Brass	24 VDC	Keyed	Metal	Receptacle Female Sockets	-20 C	60 °C	Through Hole	6		DIN (240 Degree)		Shielded	UL94 V-0
CUI Devices SD-60LS		Zinc	Nickel	2 A	Silver	Solder Eyelet(s)		Brass	100 VAC	Keyed	Metal	Receptacle Female Sockets	-40 °C	85 °C		6	Nylon Polyamide (PA)	DIN (240 Degree)		Shielded	UL94 HB	Bulkhead - Rear Side Nut
CUI Devices SD-60SN	Push-Pull	Steel	Nickel		Silver	Solder Eyelet(s)	Silver	Brass	12 V 100 VAC	Keyed	Metal	Receptacle Female Sockets	5 °C	70 °C		6	Polybutylene Terephthalate (PBT)	DIN (240 Degree)		Shielded	UL94 V-0	Flange

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Receptacle, Female Sockets Solder
