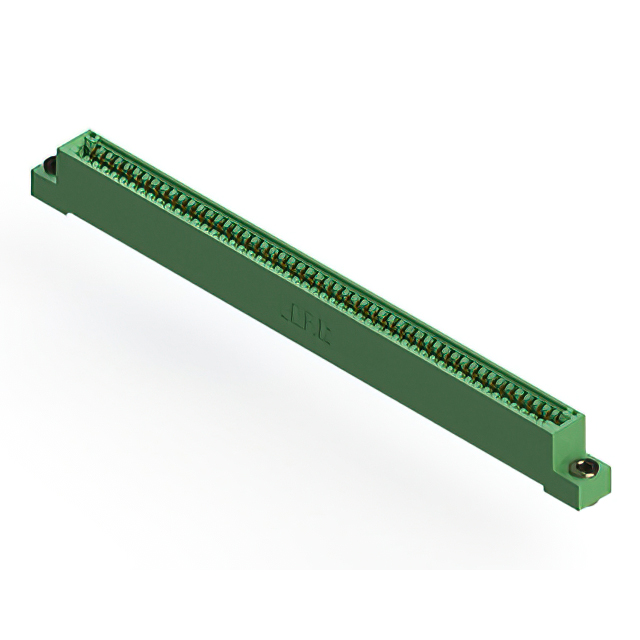

845-052-524-103
ActiveEDAC Inc.
CONN EDGE SINGLE FML 52POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
845-052-524-103
ActiveEDAC Inc.
CONN EDGE SINGLE FML 52POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 845-052-524-103 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 52 |
| Number of Positions/Bay/Row [custom] | 52 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
845-052 Series
...
| Part | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Pitch [x] | Pitch [x] | Card Type | Number of Rows | Contact Material | Read Out | Color | Termination | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions | Flange Feature | Flange Feature | Material - Insulation | Contact Type | Gender | Contact Finish | Termination Rows | Number of Positions/Bay/Row [custom] | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Through Hole | 10 Áin | 0.25 Ám | 125 °C | -40 °C | 2.54 mm | 0.1 in | Non Specified - Dual Edge | 2 | Copper Alloy | Dual | Green | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 52 | 3.25 mm | 0.128 in | Diallyl Phthalate (DAP) | Cantilever | Female | Gold | 2 | 26 | |||
EDAC Inc. | Through Hole Right Angle | 10 Áin | 0.25 Ám | 125 °C | -40 °C | 2.54 mm | 0.1 in | Non Specified - Single Edge | 1 | Copper Alloy | Single | Green | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 52 | Diallyl Phthalate (DAP) | Cantilever | Female | Gold | 1 | 52 | Flush Mount M3 Threaded Insert Top Opening | ||||
EDAC Inc. | Through Hole | 10 Áin | 0.25 Ám | 125 °C | -40 °C | 2.54 mm | 0.1 in | Non Specified - Dual Edge | 2 | Copper Alloy | Dual | Green | Solder Eyelet(s) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 52 | Diallyl Phthalate (DAP) | Cantilever | Female | Gold | 2 | 26 | Top Mount Opening Unthreaded | 0.156 in | 3.96 mm | ||
EDAC Inc. | Through Hole Right Angle | 10 Áin | 0.25 Ám | 125 °C | -40 °C | 2.54 mm | 0.1 in | Non Specified - Dual Edge | 2 | Copper Alloy | Dual | Green | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 52 | 3.25 mm | 0.128 in | Diallyl Phthalate (DAP) | Cantilever | Female | Gold | 2 | 26 | Side Mount Opening Unthreaded | ||
EDAC Inc. | Through Hole Right Angle | 10 Áin | 0.25 Ám | 125 °C | -40 °C | 2.54 mm | 0.1 in | Non Specified - Dual Edge | 2 | Copper Alloy | Dual | Green | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 52 | Diallyl Phthalate (DAP) | Cantilever | Female | Gold | 2 | 26 | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | ||
EDAC Inc. | Through Hole | 10 Áin | 0.25 Ám | 125 °C | -40 °C | 2.54 mm | 0.1 in | Non Specified - Dual Edge | 2 | Copper Alloy | Dual | Green | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 52 | Diallyl Phthalate (DAP) | Cantilever | Female | Gold | 2 | 26 | Flush Mount Top Opening Unthreaded | 0.156 in | 3.96 mm | ||
EDAC Inc. | Through Hole | 10 Áin | 0.25 Ám | 125 °C | -40 °C | 2.54 mm | 0.1 in | Non Specified - Dual Edge | 2 | Copper Alloy | Dual | Green | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 52 | 3.25 mm | 0.128 in | Diallyl Phthalate (DAP) | Cantilever | Female | Gold | 2 | 26 | Side Mount Opening Unthreaded | ||
EDAC Inc. | Through Hole | 10 Áin | 0.25 Ám | 125 °C | -40 °C | 2.54 mm | 0.1 in | Non Specified - Single Edge | 1 | Copper Alloy | Single | Green | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 52 | Diallyl Phthalate (DAP) | Cantilever | Female | Gold | 1 | 52 | Floating Bobbin Flush Mount | 0.116 in | 2.95 mm | ||
EDAC Inc. | Through Hole | 10 Áin | 0.25 Ám | 125 °C | -40 °C | 2.54 mm | 0.1 in | Non Specified - Single Edge | 1 | Copper Alloy | Single | Green | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 52 | Diallyl Phthalate (DAP) | Cantilever | Female | Gold | 1 | 52 | Flush Mount M3 Threaded Insert Top Opening | ||||
EDAC Inc. | Through Hole | 10 Áin | 0.25 Ám | 125 °C | -40 °C | 2.54 mm | 0.1 in | Non Specified - Dual Edge | 2 | Copper Alloy | Dual | Green | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 52 | Diallyl Phthalate (DAP) | Cantilever | Female | Gold | 2 | 26 | M3 Threaded Insert Top Mount Opening |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 114.71 | |
Description
General part information
845-052 Series
52 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
