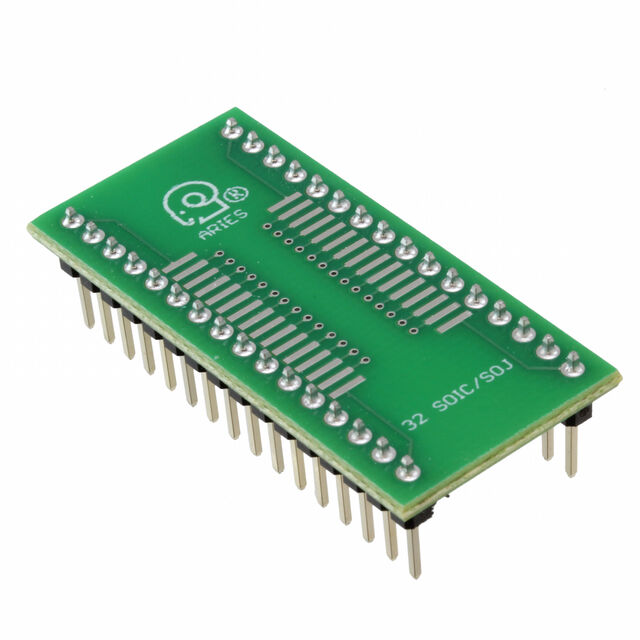

LCQT-SOIC32W

Active

Aries Electronics

SOCKET ADAPTER SOIC-W TO 32DIP

Search across all available documentation for this part.

Active

Aries Electronics

SOCKET ADAPTER SOIC-W TO 32DIP

Technical Specifications

Parameters and characteristics for this part

Part	Package Accepted	Board Thickness	Board Thickness	Board Thickness	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Material	Number of Positions	Pitch [x]	Pitch [x]	Proto Board Type	Number of Positions
Aries Electronics LCQT-SOIC16W	SOIC	0.062 in	0.0625 in	1.57 mm	20.32 mm	0.8 "	17.78 mm	0.7 in	FR4 Epoxy Glass	16	0.05 in	1.27 mm	SMD to DIP
Aries Electronics LCQT-SOIC16	SOIC	0.062 in	0.0625 in	1.57 mm	20.32 mm	0.8 "	17.78 mm	0.7 in	FR4 Epoxy Glass	16	0.05 in	1.27 mm	SMD to DIP
Aries Electronics LCQT-SOIC32W	SOIC	0.062 in	0.0625 in	1.57 mm	40.64 mm	1.6 "	17.78 mm	0.7 in	FR4 Epoxy Glass		0.05 in	1.27 mm	SMD to DIP
Aries Electronics LCQT-SOIC28	SOIC	0.062 in	0.0625 in	1.57 mm	35.56 mm	1.4 in	17.78 mm	0.7 in	FR4 Epoxy Glass		0.05 in	1.27 mm	SMD to DIP	28
Aries Electronics LCQT-SOIC32	SOIC	0.062 in	0.0625 in	1.57 mm	40.64 mm	1.6 "	17.78 mm	0.7 in	FR4 Epoxy Glass		0.05 in	1.27 mm	SMD to DIP
Aries Electronics LCQT-SOIC14W	SOIC	0.062 in	0.0625 in	1.57 mm	17.78 mm	0.7 in	17.78 mm	0.7 in	FR4 Epoxy Glass		0.05 in	1.27 mm	SMD to DIP	14

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SOCKET ADAPTER SOIC-W TO 32DIP

Technical documentation and resources
