151623-1

Obsolete

Beyond LED Technology

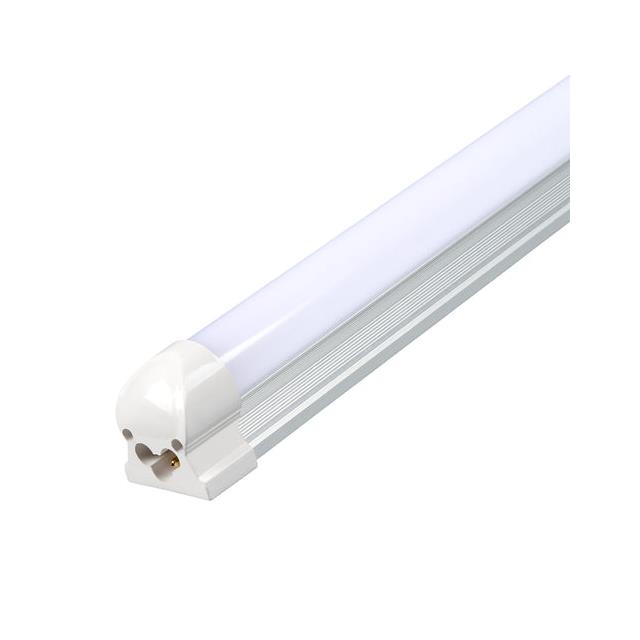

LED ENG CL WHT LNR STRIP 6500K

Search across all available documentation for this part.

Obsolete

Beyond LED Technology

LED ENG CL WHT LNR STRIP 6500K

Technical Specifications

Parameters and characteristics for this part

Specification	151623-1

CCT (K)	6500 K
Color	Cool, White
Configuration	Linear Light Strip, Plug and Play
CRI (Color Rendering Index)	80
Features	IP22
Height [z]	35.05 mm
Lens Type	Domed
Lumens/Watt @ Current - Test	140 lm/W
Luminous Flux @ Current/Temperature	8400 lm
Size / Dimension	2374.9 mm
Type	LED Engine
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	188.5 VAC

Part	CRI (Color Rendering Index)	Height [z]	Configuration	Features	Type	Lumens/Watt @ Current - Test	Viewing Angle	Size / Dimension	Color	Luminous Flux @ Current/Temperature	Lens Type	CCT (K)	Voltage - Forward (Vf) (Typ)
Beyond LED Technology 151623-1	80	35.05 mm	Linear Light Strip Plug and Play	IP22	LED Engine	140 lm/W	120 °	2374.9 mm	Cool White	8400 lm	Domed	6500 K	188.5 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 144.99

General part information

LED Lighting COBs Engines Modules LED Engine - White, Cool Linear Light Strip, Plug and Play
