H3WWH-1006M

Active

Assmann WSW Components

IDC CBL - HHPL10H/AE10M/HHPL10H

Search across all available documentation for this part.

Active

Assmann WSW Components

IDC CBL - HHPL10H/AE10M/HHPL10H

Technical Specifications

Parameters and characteristics for this part

Part	Number of Rows	Number of Positions	Contact Finish	Color	Pitch - Cable	Pitch - Cable	Cable Termination	Shielding	Length [x]	Length [x]	Features	Pitch - Connector	Pitch - Connector	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Length	Length	Length
Assmann WSW Components H3WWH-1018M	2	10	Gold	Multiple Ribbon	0.05 "	1.27 mm	IDC	Unshielded	457.2 mm	1.5 ft	Flange Polarizing Key	0.1 in	2.54 mm	15 µin	0.38 µm	Plug to Plug
Assmann WSW Components H3WWH-1036G	2	10	Gold		0.05 "	1.27 mm	IDC	Unshielded	914.4 mm	3 ft	Flange Polarizing Key	0.1 in	2.54 mm	15 µin	0.38 µm	Plug to Plug
Assmann WSW Components H3WWH-1006M	2	10	Gold	Multiple Ribbon	0.05 "	1.27 mm	IDC	Unshielded			Flange Polarizing Key	0.1 in	2.54 mm	15 µin	0.38 µm	Plug to Plug	152.4 mm	6 "	0.5 '
Assmann WSW Components H3WWH-1018G	2	10	Gold		0.05 "	1.27 mm	IDC	Unshielded	457.2 mm	1.5 ft	Flange Polarizing Key	0.1 in	2.54 mm	15 µin	0.38 µm	Plug to Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

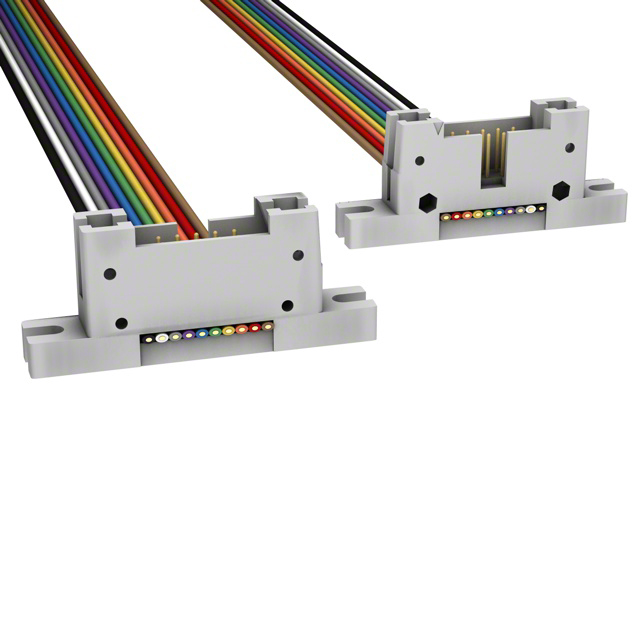

10 Position Cable Assembly Rectangular Plug to Plug 0.500' (152.40mm, 6.00")
