50.013 PA7035

Active

Jacob GmbH

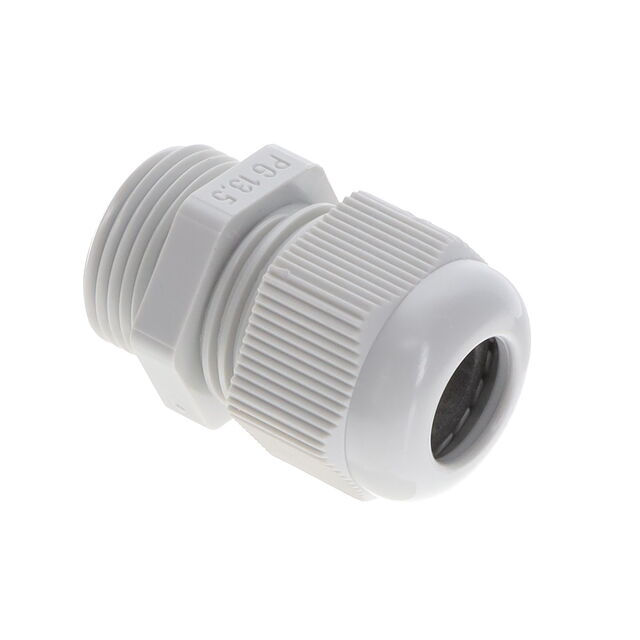

CABLE GLAND 6-12MM PG13.5

Search across all available documentation for this part.

Active

Jacob GmbH

CABLE GLAND 6-12MM PG13.5

Technical Specifications

Parameters and characteristics for this part

Specification	50.013 PA7035

Color	Gray
Includes	Sealing Ring
Ingress Protection	IP68 - Dust Tight, Waterproof
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.472 in
Outside Cable Diameter (Max) [Max] [diameter]	12 mm
Outside Cable Diameter (Min) [Min] [diameter]	6 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.236 in
Thread Length	0.354 in
Thread Length	9 mm
Thread Size	PG13.5
Type	Cable Gland

Part	Type	Color	Operating Temperature [Max]	Operating Temperature [Min]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Thread Length	Thread Length	Ingress Protection	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Thread Size	Includes
Jacob GmbH 50.013 PASW15	Cable Gland	Black	100 °C	-40 °C	6 mm	0.236 in	0.591 in	15 mm	IP68 - Dust Tight Waterproof	0.472 in	12 mm	PG13.5	Sealing Ring
Jacob GmbH 50.013 PABSSW	Cable Gland	Black	100 °C	-40 °C	6 mm	0.236 in	0.354 in	9 mm	IP68 - Dust Tight Waterproof	0.472 in	12 mm	PG13.5	Strain Relief
Jacob GmbH 50.013 PA7035	Cable Gland	Gray	100 °C	-40 °C	6 mm	0.236 in	0.354 in	9 mm	IP68 - Dust Tight Waterproof	0.472 in	12 mm	PG13.5	Sealing Ring
Jacob GmbH 50.013 PA	Cable Gland	Gray	100 °C	-40 °C	6 mm	0.236 in	0.354 in	9 mm	IP68 - Dust Tight Waterproof	0.472 in	12 mm	PG13.5	Sealing Ring

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Polyamide (PA6), Nylon 6 PG13.5 Gray
