684M3W3203L621 - 684M3W3203L621

684M3W3203L621

Active
MH Connectors

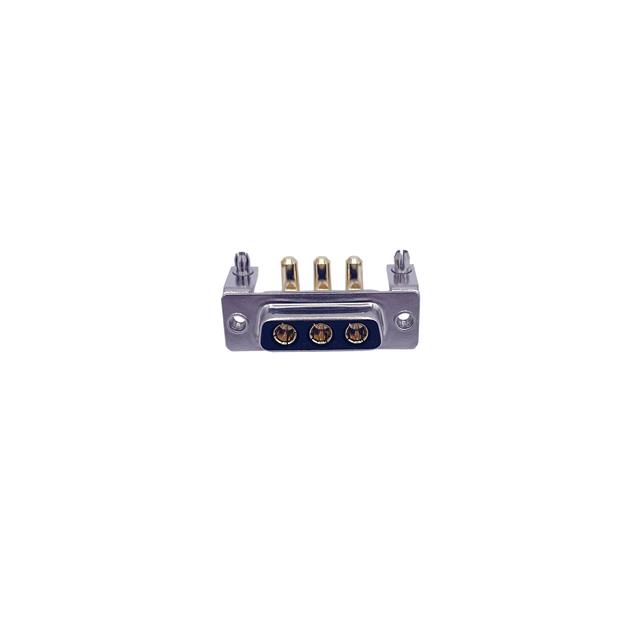

COMBO D-SUB CONN, RCPT, DA-3W3, TH ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet3D Product Image EN+2
684M3W3203L621 - 684M3W3203L621

684M3W3203L621

Active
MH Connectors

COMBO D-SUB CONN, RCPT, DA-3W3, TH ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet3D Product Image EN+2

Technical Specifications

Parameters and characteristics for this part

Specification684M3W3203L621
ColorBlack
Connector StyleD-Sub, Combo
Connector TypeReceptacle, Female Sockets
Contact FinishGold
Contact Finish ThicknessFlash
Contact MaterialCopper Alloy
Contact TypePower
Current Rating (Amps)40 A
Dielectric MaterialPolybutylene Terephthalate (PBT)
FeaturesBoard Lock, Mounting Brackets
Flange FeatureHousing/Shell (4-40)
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole, Right Angle, Board Edge
Number of Positions3
Number of Rows1
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Shell Material, FinishNickel Plated, Steel
Shell Size, Connector Layout [custom]2 (DA, A)
Shell Size, Connector Layout [custom]3W3
TerminationSolder
Voltage Rating250 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 20.68
10$ 15.93
25$ 14.41
40$ 13.71
80$ 12.75
230$ 11.46
440$ 10.76
945$ 10.06
NewarkEach 1$ 20.30
10$ 15.82
25$ 13.71
50$ 13.70
100$ 12.19

Description

General part information

684M3W3 Series

3 (Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
