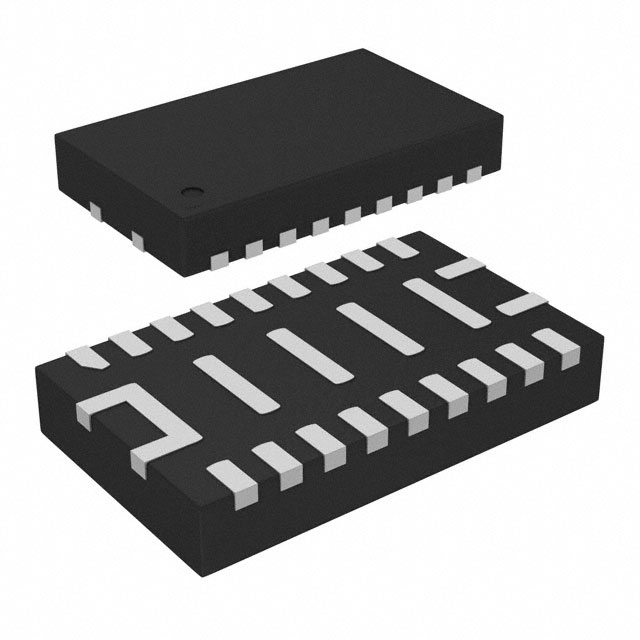

MPQ5066GQV-AEC1-Z
ActiveMONOLITHIC POWER SYSTEMS (MPS)
28V, 6A, 7M RDS(ON) HOT-SWAP PRO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MPQ5066GQV-AEC1-Z
ActiveMONOLITHIC POWER SYSTEMS (MPS)
28V, 6A, 7M RDS(ON) HOT-SWAP PRO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MPQ5066GQV-AEC1-Z |
|---|---|
| Current - Output (Max) [Max] | 6 A |
| Current - Supply | 1 mA |
| Features | Thermal Limit, Auto Retry, Latched Fault, UVLO, Fault Timeout |
| Grade | Automotive |
| Internal Switch(s) | False |
| Mounting Type | Surface Mount |
| Number of Channels | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 22-PowerVFQFN |
| Programmable Features | Current Limit, Slew Rate, Latched Fault, Auto Retry, Fault Timeout |
| Qualification | AEC-Q100 |
| Supplier Device Package | 22-QFN (3x5) |
| Type | Hot Swap Controller, Monitor |
| Voltage - Supply [Max] | 28 V |
| Voltage - Supply [Min] | 6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.09 | |
| 10 | $ 4.57 | |||
| 25 | $ 4.32 | |||
| 100 | $ 3.74 | |||
| 250 | $ 3.55 | |||
| 500 | $ 3.19 | |||
| 1000 | $ 2.69 | |||
| 2500 | $ 2.55 | |||
| Digi-Reel® | 1 | $ 5.09 | ||
| 10 | $ 4.57 | |||
| 25 | $ 4.32 | |||
| 100 | $ 3.74 | |||
| 250 | $ 3.55 | |||
| 500 | $ 3.19 | |||
| 1000 | $ 2.69 | |||
| 2500 | $ 2.55 | |||
| Tape & Reel (TR) | 5000 | $ 2.46 | ||
Description
General part information
MPQ5066 Series
Hot Swap Controller, Monitor 1 Channel 22-QFN (3x5)
Documents
Technical documentation and resources
