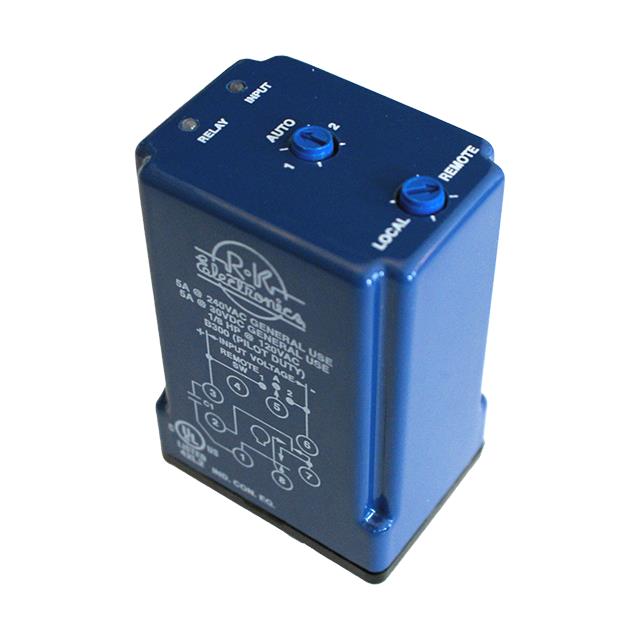

TDR-24/240V-AA8

Active

R-K Electronics, Inc.

RELAY GEN PURP SPDT 5A 24-240V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TDR-24/240V-AA8

Active

R-K Electronics, Inc.

RELAY GEN PURP SPDT 5A 24-240V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TDR-24/240V-AA8

Coil Type	Non Latching
Coil Voltage [Max]	240 VAC
Coil Voltage [Min]	24 VAC
Contact Form	SPDT (1 Form C)
Contact Rating (Current)	5 A
Features	Lighted Indicator
Mounting Type	Socketable
Operate Time	5 ms
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	0 °C
Relay Type	General Purpose
Release Time	5 ms
Switching Voltage [Max]	30 VDC, 250 VAC
Termination Style	Plug In, 8 Pin (Octal)

TDR-24 Series

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Delay Time [Max]	Delay Time [Min]	Timing Adjustment Method	Timing Initiate Method	Contact Rating @ Voltage	Relay Type	Circuit	Termination Style	Release Time	Features	Switching Voltage [Max]	Coil Voltage [Min]	Coil Voltage [Max]	Operate Time	Contact Form	Coil Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Rating (Current)	Function
R-K Electronics, Inc. TDR-24/240V-AX8-0002	24 VAC	240 VAC	Socketable	24 Hrs	0.1 Sec	Screwdriver Slot	Input Voltage	5 A 30 VDC 250 VAC	Mechanical Relay	DPDT (2 Form C)	Plug In 8 Pin (Octal)
R-K Electronics, Inc. TDR-24/240V-AA8-X			Socketable						General Purpose		Plug In 8 Pin (Octal)	5 ms	Lighted Indicator	30 VDC 250 VAC	24 VAC	240 VAC	5 ms	SPDT (1 Form C)	Non Latching	65 °C	0 °C	5 A
R-K Electronics, Inc. TDR-24/240V-AR8	24 VAC	240 VAC	Socketable	24 Hrs	0.1 Sec	Screwdriver Slot	Input Voltage	5 A 30 VDC 250 VAC	Mechanical Relay	DPDT (2 Form C)	Plug In 8 Pin (Octal)												Repeat Cycle
R-K Electronics, Inc. TDR-24/240V-AA8			Socketable						General Purpose		Plug In 8 Pin (Octal)	5 ms	Lighted Indicator	30 VDC 250 VAC	24 VAC	240 VAC	5 ms	SPDT (1 Form C)	Non Latching	65 °C	0 °C	5 A
R-K Electronics, Inc. TDR-24/240V-AR11	24 VAC	240 VAC	Socketable	24 Hrs	0.1 Sec	Screwdriver Slot	Input Voltage	5 A 30 VDC 250 VAC	Mechanical Relay	DPDT (2 Form C)	Plug In 11 Pin (Octal)												Repeat Cycle
R-K Electronics, Inc. TDR-24/240V-AF11	24 VAC	240 VAC	Socketable	24 Hrs	0.1 Sec	Screwdriver Slot	Input Voltage	5 A 30 VDC 250 VAC	Mechanical Relay	DPDT (2 Form C)	Plug In 11 Pin (Octal)												Off-Delay
R-K Electronics, Inc. TDR-24/240V-AX11-0001	24 VAC	240 VAC	Socketable	24 Hrs	0.1 Sec	Screwdriver Slot	Input Voltage	5 A 30 VDC 250 VAC	Mechanical Relay	DPDT (2 Form C)	Plug In 11 Pin (Octal)
R-K Electronics, Inc. TDR-24/240V-RC11	24 VAC	240 VAC	Socketable	24 Hrs	0.1 Sec	External Resistor	Input Voltage	5 A 30 VDC 250 VAC	Mechanical Relay	DPDT (2 Form C)	Plug In 11 Pin (Octal)												On-Delay
R-K Electronics, Inc. TDR-24/240V-AF8	24 VAC	240 VAC	Socketable	24 Hrs	0.1 Sec	Screwdriver Slot	Input Voltage	5 A 30 VDC 250 VAC	Mechanical Relay	DPDT (2 Form C)	Plug In 8 Pin (Octal)												Off-Delay
R-K Electronics, Inc. TDR-24/240V-AC8	24 VAC	240 VAC	Socketable	24 Hrs	0.1 Sec	Screwdriver Slot	Input Voltage	5 A 30 VDC 250 VAC	Mechanical Relay	DPDT (2 Form C)	Plug In 8 Pin (Octal)												On-Delay

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 140.00
		5	$ 126.00
		10	$ 113.40

Description

General part information

TDR-24 Series

General Purpose Relay SPDT (1 Form C) 24 ~ 240VAC/DC Coil Socketable
