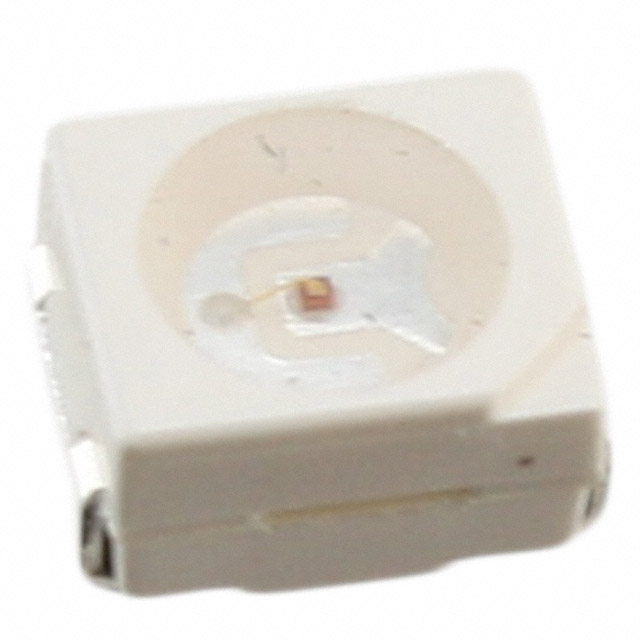

SMTL4-SRGB

Active

Bivar Inc.

LED RGB CLEAR 4PLCC SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SMTL4-SRGB

Active

Bivar Inc.

LED RGB CLEAR 4PLCC SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SMTL4-SRGB

Color	Red, Green, Blue
Configuration	Common Anode
Current - Test [custom]	20 mA
Current - Test [custom]	20 mA
Current - Test [custom]	20 mA
Height (Max) [Max] [z]	2.05 mm
Lens Color	Colorless
Lens Size [diameter]	2.4 mm
Lens Transparency	Clear
Millicandela Rating [custom]	1450 mcd
Millicandela Rating [custom]	285 mcd
Millicandela Rating [custom]	180 mcd
Mounting Type	Surface Mount
Package / Case	4-PLCC
Size / Dimension [x]	3.2 mm
Size / Dimension [y]	2.8 mm
Supplier Device Package	4-PLCC
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ) [custom]	3.3 V
Voltage - Forward (Vf) (Typ) [custom]	3.3 V
Voltage - Forward (Vf) (Typ) [custom]	1.9 V
Wavelength - Dominant	525 nm, 625 nm, 470 nm

SMTL4 Series

Part	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Mounting Type	Wavelength - Dominant	Supplier Device Package	Configuration	Lens Size [diameter]	Height (Max) [Max] [z]	Current - Test	Package / Case	Lens Color	Color	Size / Dimension [y]	Size / Dimension [x]	Viewing Angle	Lens Transparency	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Millicandela Rating [custom]	Current - Test	Height (Max) [Max]	Millicandela Rating	Voltage - Forward (Vf) (Typ) [custom]
Bivar Inc. SMTL4-SBC-RY	1.9 V 1.9 V	180mcd Red 180mcd Yellow	Surface Mount	591 nm 631 nm	4-PLCC	Independent	2.4 mm	2.05 mm	20mA Red 20mA Yellow	4-PLCC	Colorless	Red Yellow	2.8 mm	3.2 mm	120 °	Clear
Bivar Inc. SMTL4-RGB			Surface Mount	466 nm 570 nm 640 nm	4-PLCC	Common Anode	2.4 mm	2.05 mm		4-PLCC	Colorless	Blue Green Red	2.8 mm	3.2 mm	120 °	Clear	28.5 mcd 36 mcd	22.5 mcd 40 mcd	11.5 mcd 50 mcd	1.9 V 2.3 V	3.3 V 4.3 V	1.85 V 1.9 V	20 mA	20 mA	20 mA
Bivar Inc. SMTL4-BC-RB			Surface Mount	466 nm 640 nm	4-PLCC	Independent	2.4 mm	2.05 mm		4-PLCC	Colorless	Blue Red	2.8 mm	3.2 mm	120 °	Clear	36 mcd		50 mcd		3.3 V	1.85 V	20 mA	20 mA
Bivar Inc. SMTL4-SBC-YG	1.9 V 1.9 V		Surface Mount	574 nm 591 nm	4-PLCC	Independent	2.4 mm			4-PLCC	Colorless	Green Yellow	2.8 mm	3.2 mm	120 °	Clear		72 mcd								145 mcd	20 mA 20 mA	1.95 mm
Bivar Inc. SMTL4-SRGB			Surface Mount	470 nm 525 nm 625 nm	4-PLCC	Common Anode	2.4 mm	2.05 mm		4-PLCC	Colorless	Blue Green Red	2.8 mm	3.2 mm	120 °	Clear	180 mcd	1450 mcd	285 mcd	3.3 V	3.3 V	1.9 V	20 mA	20 mA	20 mA
Bivar Inc. SMTL4-BC	1.85 V 1.9 V		Surface Mount	570 nm 640 nm	4-PLCC	Independent	2.4 mm	2.05 mm		4-PLCC	Colorless	Green Red	2.8 mm	3.2 mm	120 °	Clear	36 mcd	40 mcd									20 mA 20 mA
Bivar Inc. SMTL4-BC-RY			Surface Mount	585 nm 640 nm	4-PLCC	Independent	2.4 mm	2.05 mm	20mA Red 20mA Yellow	4-PLCC	Colorless	Red Yellow	2.8 mm	3.2 mm	120 °	Clear						1.85 V							16 mcd 36 mcd	1.9 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.17
		10	$ 2.12
		100	$ 1.63
		500	$ 1.47
		1000	$ 1.27
	Digi-Reel®	1	$ 3.17
		10	$ 2.12
		100	$ 1.63
		500	$ 1.47
		1000	$ 1.27
	Tape & Reel (TR)	2000	$ 1.20
		6000	$ 1.17

Description

General part information

SMTL4 Series

Red, Green, Blue (RGB) 625nm Red, 525nm Green, 470nm Blue LED Indication - Discrete 1.9V Red, 3.3V Green, 3.3V Blue 4-PLCC
