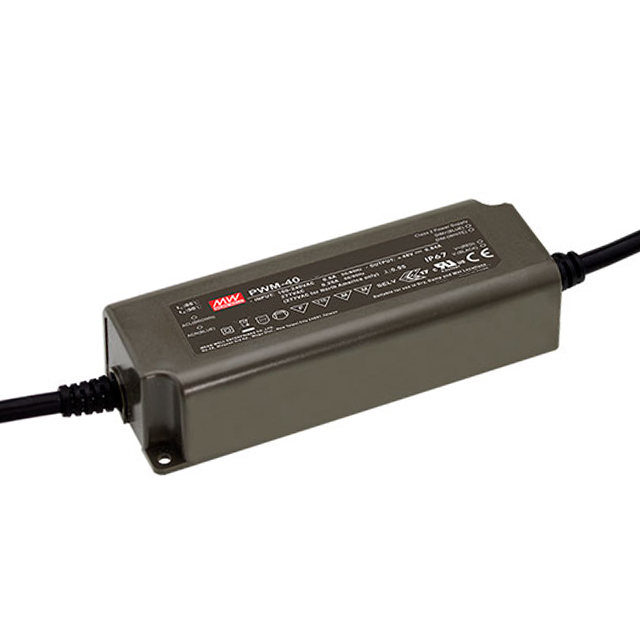

PWM-40-12
ActiveMEAN WELL USA Inc.
LED DRIVER CV AC/DC 12V 3.34A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PWM-40-12
ActiveMEAN WELL USA Inc.
LED DRIVER CV AC/DC 12V 3.34A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PWM-40-12 |
|---|---|
| Approval Agency | cURus, CE, ENEC, CB, CCC |
| Current - Output (Max) [Max] | 3.34 A |
| Dimming | Analog, PWM |
| Efficiency | 86 % |
| Features | OTP, SCP, OVP, OCP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 40 W |
| Ratings | IP67 |
| Size / Dimension [x] | 5.91 " |
| Size / Dimension [x] | 150 mm |
| Size / Dimension [y] | 53 mm |
| Size / Dimension [y] | 2.09 " |
| Size / Dimension [z] | 1.38 in |
| Size / Dimension [z] | 35 mm |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Voltage |
| Voltage - Input (Max) [Max] | 305 VAC |
| Voltage - Input (Min) [Min] | 90 VAC |
| Voltage - Isolation | 3750 V |
| Voltage - Output | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 31.00 | |
| 5 | $ 28.74 | |||
| 10 | $ 27.82 | |||
| 25 | $ 26.65 | |||
Description
General part information
PWM-40 Series
3.34A 12V Constant Voltage LED Driver AC DC Converter Topology 1 Output
