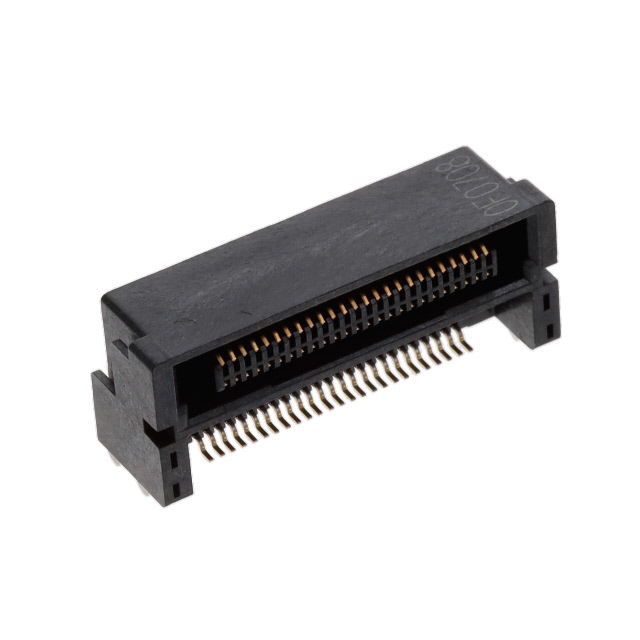

AX03R050HAY1R500
ActiveJAE Electronics
RIGID SIDE B2B CONNECTOR, 100 PO
Deep-Dive with AI
Search across all available documentation for this part.
AX03R050HAY1R500
ActiveJAE Electronics
RIGID SIDE B2B CONNECTOR, 100 PO
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AX03R050HAY1R500 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 4 Áin |
| Contact Finish Thickness | 0.1 Ám |
| Features | Board Guide |
| Height Above Board [z] | 0.359 in |
| Height Above Board [z] | 9.12 mm |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Pitch [x] | 0.64 mm |
| Pitch [x] | 0.025 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 7.14 | |
| 10 | $ 6.45 | |||
| 25 | $ 6.10 | |||
| 50 | $ 5.95 | |||
| 100 | $ 5.65 | |||
| 250 | $ 5.06 | |||
| Digi-Reel® | 1 | $ 7.14 | ||
| 10 | $ 6.45 | |||
| 25 | $ 6.10 | |||
| 50 | $ 5.95 | |||
| 100 | $ 5.65 | |||
| 250 | $ 5.06 | |||
| Tape & Reel (TR) | 500 | $ 3.68 | ||
Description
General part information
AX03R050 Series
50 Position Connector Plug, Center Strip Contacts Surface Mount, Right Angle Gold
Documents
Technical documentation and resources
No documents available
