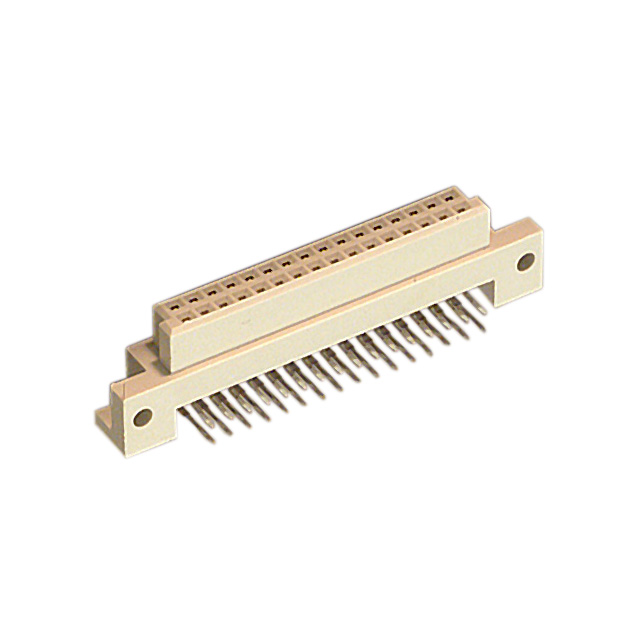

PCN13-32S-2.54DS(71)

LTB

Hirose Electric USA, Inc.

CONN DIN RCPT 32POS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PCN13-32S-2.54DS(71)

Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Current Rating (Amps)	2 A
Level, Class	1
Material - Insulation	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Style	B
Termination	Solder

PCN13 Series

Part	Current Rating (Amps)	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Material - Insulation	Material Flammability Rating	Number of Positions	Termination	Number of Positions Loaded	Mounting Type	Connector Type	Pitch [x]	Pitch [x]	Style	Level, Class	Number of Positions
Hirose Electric USA, Inc. PCN13E-96S-2.54DSA(71)	2 A	Gold	85 °C	-55 °C	3	Polybutylene Terephthalate (PBT)	UL94 V-0	96	Solder	All	Through Hole	Receptacle Female Sockets	2.54 mm	0.1 in
Hirose Electric USA, Inc. PCN13-100S-2.54DS(71)	2 A	Gold	85 °C	-55 °C	2	Polybutylene Terephthalate (PBT)	UL94 V-0	100	Solder	All	Through Hole Right Angle	Receptacle Female Sockets	2.54 mm	0.1 in	B	1
Hirose Electric USA, Inc. PCN13-50S-2.54DSA(71)	2 A	Gold	85 °C	-55 °C	2	Polybutylene Terephthalate (PBT)	UL94 V-0	50	Solder	All	Through Hole	Receptacle Female Sockets	2.54 mm	0.1 in	B	1
Hirose Electric USA, Inc. PCN13-100S-2.54DSA(71)	2 A	Gold	85 °C	-55 °C	2	Polybutylene Terephthalate (PBT)	UL94 V-0	100	Solder	All	Through Hole	Receptacle Female Sockets	2.54 mm	0.1 in	B	1
Hirose Electric USA, Inc. PCN13-32S-2.54DS(71)	2 A	Gold	85 °C	-55 °C	2	Polybutylene Terephthalate (PBT)	UL94 V-0		Solder	All	Through Hole Right Angle	Receptacle Female Sockets	2.54 mm	0.1 in	B	1
Hirose Electric USA, Inc. PCN13-16S-2.54DS(71)	2 A	Gold	85 °C	-55 °C	2	Polybutylene Terephthalate (PBT)	UL94 V-0		Solder	All	Through Hole Right Angle	Receptacle Female Sockets	2.54 mm	0.1 in			16
Hirose Electric USA, Inc. PCN13E-44S-2.54DS(71)	2 A	Gold	85 °C	-55 °C	2	Polybutylene Terephthalate (PBT)	UL94 V-0	44	Solder	All	Through Hole Right Angle	Receptacle Female Sockets	2.54 mm	0.1 in
Hirose Electric USA, Inc. PCN13E-10S-2.54DS(71)	2 A	Gold	85 °C	-55 °C	2	Polybutylene Terephthalate (PBT)	UL94 V-0	10	Solder	All	Through Hole Right Angle	Receptacle Female Sockets	2.54 mm	0.1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 3.63
		22	$ 2.92
		44	$ 2.78
		66	$ 2.70
		110	$ 2.61
		264	$ 2.45
		506	$ 2.34
		1012	$ 2.23
		2508	$ 2.09

Description

General part information

PCN13 Series

32 Position Din Connector Receptacle, Female Sockets Gold Through Hole, Right Angle
