KTPS05-05015U-VI-P1

Active

Volgen + Furuno

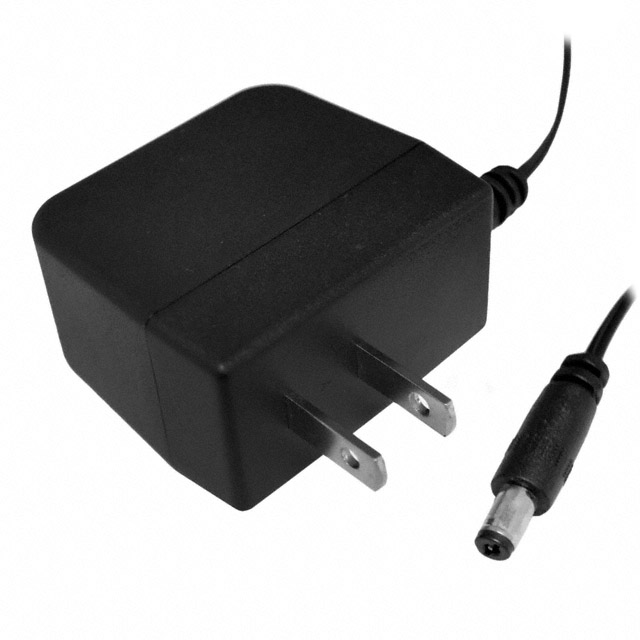

AC/DC WALL MOUNT ADAPTER 5V 5W

Deep-Dive with AI

Search across all available documentation for this part.

KTPS05-05015U-VI-P1

Active

Volgen + Furuno

AC/DC WALL MOUNT ADAPTER 5V 5W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	KTPS05-05015U-VI-P1

Applications	ITE (Commercial)
Approval Agency	IEC
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	1.5 A
Efficiency	Level VI
Form	Wall Mount (Class II)
Input Connector	NEMA 1-15P
Input Type	Fixed Blade
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	2.1 mm, 5.5 mm
Output Connector [x]	9.5 mm
Polarization	Positive Center
Power (Watts)	5 W
Region Utilized	North America
Size / Dimension [x]	56 mm
Size / Dimension [x]	2.2 in
Size / Dimension [y]	1.1 in
Size / Dimension [y]	28 mm
Size / Dimension [z]	1.65 "
Size / Dimension [z]	42 mm
Standard Number	60950-1
Voltage - Input [Max]	240 VAC
Voltage - Input [Min]	100 VAC
Voltage - Output	5 V
Weight	0.243 lb
Weight	110.22 g

KTPS05 Series

Part	Weight	Weight	Polarization	Power (Watts)	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Approval Agency	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Form	Cord Length	Cord Length	Voltage - Input [Max]	Voltage - Input [Min]	Applications	Input Connector	Voltage - Output	Input Type	Region Utilized	Output Connector	Output Connector [z]	Output Connector [diameter]	Efficiency	Output Connector [x]	Standard Number	For Use With/Related Products	Accessory Type	Output Connector [y]
Volgen + Furuno KTPS05-06012U-VI-P3	0.243 lb	110.22 g	Positive Center	7.2 W	56 mm	1.65 "	2.2 in	1.1 in	42 mm	28 mm	cUL UL	1.2 A	40 °C	0 °C	Wall Mount (Class II)	1.5 m	59 in	240 VAC	100 VAC	ITE (Commercial)	NEMA 1-15P	6 V	Fixed Blade	North America	Barrel Plug	9.5 mm	1.35 mm 3.5 mm	Level VI
Volgen + Furuno KTPS05-05010U-VI-P1	0.243 lb	110.22 g	Positive Center	5 W	56 mm	1.65 "	2.2 in	1.1 in	42 mm	28 mm	cUL UL	1 A	40 °C	0 °C	Wall Mount (Class II)	1.5 m	59 in	240 VAC	100 VAC	ITE (Commercial)	NEMA 1-15P	5 V	Fixed Blade	North America	Barrel Plug		2.1 mm 5.5 mm	Level VI	9.5 mm
Volgen + Furuno KTPS05-0501USB-EU				5 W	59.3 mm	0.83 in	2.33 in	1.33 in	21 mm	33.8 mm	IEC	1 A	40 °C	0 °C	Wall Mount (Class II)	1.5 m	59 in	264 VAC	90 VAC	ITE (Commercial)	KSC 8305	5 V	Fixed Blade	Europe				Level VI		60950-1
Volgen + Furuno KTPS05-07510U-VI-P1	0.243 lb	110.22 g	Positive Center	5 W	56 mm	1.65 "	2.2 in	1.1 in	42 mm	28 mm	IEC	1 A	40 °C	0 °C	Wall Mount (Class II)	1.5 m	59 in	240 VAC	100 VAC	ITE (Commercial)	NEMA 1-15P	7.5 V	Fixed Blade	North America	Barrel Plug		2.1 mm 5.5 mm	Level VI	9.5 mm	60950-1
Volgen + Furuno KTPS05-0501USB-MULTI EU PLUG																															Wall Adapter (Multi Plug)	Input Plug Europe
Volgen + Furuno KTPS05-0501USB-MULTI UK PLUG																															Wall Adapter (Multi Plug)	Input Plug United Kingdom
Volgen + Furuno KTPS05-05015U-VI-P1	0.243 lb	110.22 g	Positive Center	5 W	56 mm	1.65 "	2.2 in	1.1 in	42 mm	28 mm	IEC	1.5 A	40 °C	0 °C	Wall Mount (Class II)	1.5 m	59 in	240 VAC	100 VAC	ITE (Commercial)	NEMA 1-15P	5 V	Fixed Blade	North America	Barrel Plug		2.1 mm 5.5 mm	Level VI	9.5 mm	60950-1
Volgen + Furuno KTPS05-0501USB-MULTI				5 W	43.5 mm	1.13 in	1.71 "	1.61 "	28.6 mm	40.9 mm	CE GS UL	1 A	40 °C	0 °C	Wall Mount (Class II)			264 VAC	90 VAC	ITE (Commercial)	Multi-Blade	5 V	Multi-Blade (Sold Separately)	International				Level VI
Volgen + Furuno KTPS05-09006U-VI-P1R	0.243 lb	110.22 g	Positive Center	5.4 W	56 mm	1.65 "	2.2 in	1.1 in	42 mm	28 mm	cUL UL	600 mA	40 °C	0 °C	Wall Mount (Class II)	1.5 m	59 in	240 VAC	100 VAC	ITE (Commercial)	NEMA 1-15P	9 V	Fixed Blade	North America	Barrel Plug R/A	9.5 mm		Level VI	2.1 mm				5.5 mm
Volgen + Furuno KTPS05-09006U-VI-P2	0.243 lb	110.22 g	Positive Center	5.4 W	56 mm	1.65 "	2.2 in	1.1 in	42 mm	28 mm	cUL UL	600 mA	40 °C	0 °C	Wall Mount (Class II)	1.5 m	59 in	240 VAC	100 VAC	ITE (Commercial)	NEMA 1-15P	9 V	Fixed Blade	North America	Barrel Plug		2.5 mm 5.5 mm	Level VI	9.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 8.04
		5	$ 7.64
		10	$ 7.44
		25	$ 7.03
		50	$ 6.63
		100	$ 6.43
		300	$ 6.03
		500	$ 5.63

Description

General part information

KTPS05 Series

5V 5 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
