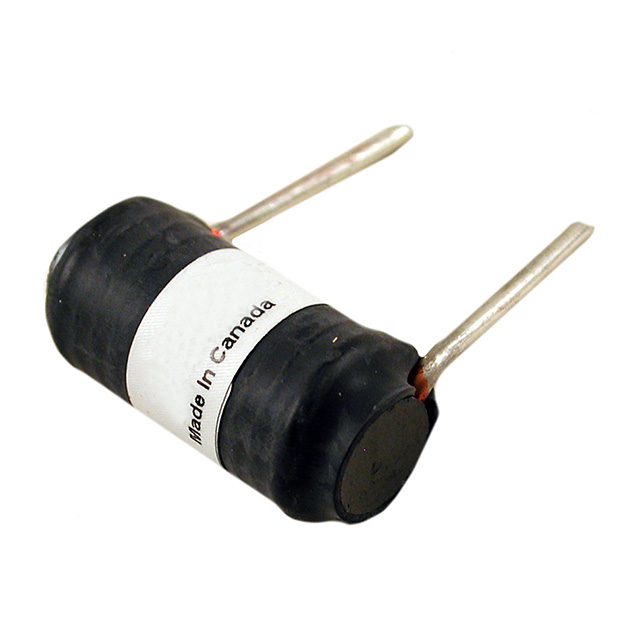

1538M05

Active

Hammond Manufacturing

FIXED IND 100UH 4.9A 61 MOHM TH

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1538M05

Current Rating (Amps)	4.9 A
DC Resistance (DCR) [Max]	61 mOhm
Inductance	100 µH
Mounting Type	Through Hole
Package / Case	Radial, Horizontal Cylinder
Shielding	Unshielded
Size / Dimension [diameter]	0.81 "
Size / Dimension [diameter]	20.57 mm
Size / Dimension [x]	28.45 mm
Size / Dimension [x]	1.12 "
Tolerance	10 %
Type	Wirewound

1538 Series

Part	Inductance	Type	Shielding	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	Mounting Type	DC Resistance (DCR)	Tolerance	Current Rating (Amps)	Package / Case	Size / Dimension [z]	Size / Dimension [z]	DC Resistance (DCR) [Max]
Hammond Manufacturing 1538M24	50 µH	Wirewound	Unshielded	1 in	41.15 mm	1.62 "	25.4 mm	Through Hole	13 mOhm	10 %	15 A	Radial Horizontal Cylinder
Hammond Manufacturing 1538M01	5 µH	Wirewound	Unshielded	0.63 in			16 mm	Through Hole	13 mOhm	10 %	10 A	Radial Horizontal Cylinder	22.35 mm	0.88 in
Hammond Manufacturing 1538M16	10 µH	Wirewound	Unshielded	0.94 in	35.05 mm	1.38 "	23.88 mm	Through Hole		10 %	16 A	Radial Horizontal Cylinder			8 mOhm
Hammond Manufacturing 1538M10	27 µH	Wirewound	Unshielded				0.88 in	Through Hole		10 %		Radial Horizontal Cylinder	0.88 in
Hammond Manufacturing 1538M19	68 µH	Wirewound	Unshielded	0.94 in	35.05 mm	1.38 "	23.88 mm	Through Hole		10 %	10 A	Radial Horizontal Cylinder			23 mOhm
Hammond Manufacturing 1538M05	100 µH	Wirewound	Unshielded	0.81 "	28.45 mm	1.12 "	20.57 mm	Through Hole		10 %	4.9 A	Radial Horizontal Cylinder			61 mOhm
Hammond Manufacturing 1538M11	50 µH	Wirewound	Unshielded	0.88 "		1.12 "		Through Hole		10 %	8 A	Radial Horizontal Cylinder			28 mOhm
Hammond Manufacturing 1538M15	5 µH	Wirewound	Unshielded	0.69 in	28.45 mm	1.12 "	17.53 mm	Through Hole		10 %	19 A	Radial Horizontal Cylinder			6 mOhm
Hammond Manufacturing 1538M23	27 µH	Wirewound	Unshielded	1 in	35.05 mm	1.38 "	25.4 mm	Through Hole		10 %	15 A	Radial Horizontal Cylinder			10 mOhm
Hammond Manufacturing 1538M21	5 µH	Wirewound	Unshielded	0.72 in			18.29 mm	Through Hole	4 mOhm	10 %	23 A	Radial Horizontal Cylinder	35.05 mm	1.38 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.03
		10	$ 5.31

Description

General part information

1538 Series

100 µH Unshielded Wirewound Inductor 4.9 A 61mOhm Max Radial, Horizontal Cylinder
