GR-2022-1600
ActiveCW Industries

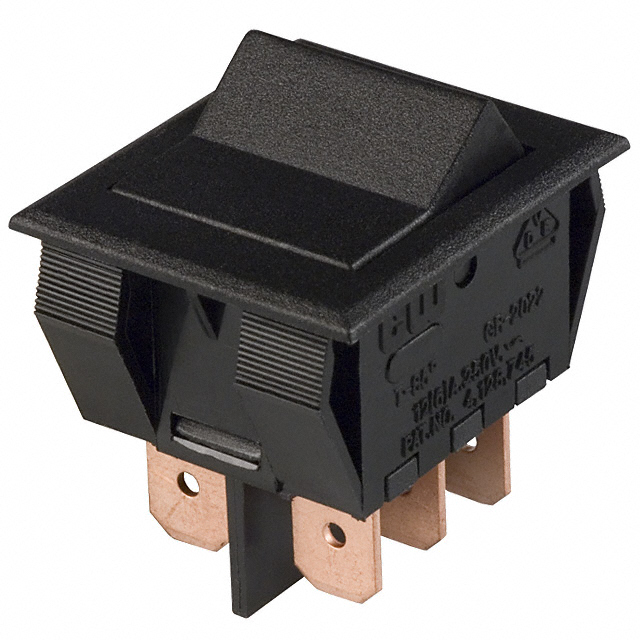

SWITCH ROCKER DPDT 16A 125V
Deep-Dive with AI
Search across all available documentation for this part.
GR-2022-1600
ActiveCW Industries
SWITCH ROCKER DPDT 16A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GR-2022-1600 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Concave (Standard V) |
| Circuit | DPDT |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 16 A |
| Electrical Life | 25000 Steps |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [x] | 27.2 mm |
| Panel Cutout Dimensions [y] | 22.15 mm |
| Switch Function | On-On |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.76 | |
| 10 | $ 4.24 | |||
| 25 | $ 4.02 | |||
| 50 | $ 3.88 | |||
| 100 | $ 3.69 | |||
| 250 | $ 3.53 | |||
| 500 | $ 3.22 | |||
| 1000 | $ 3.08 | |||
Description
General part information
GR-2022 Series
Rocker Switch DPDT 16A (AC) 125 V Panel Mount, Snap-In
Documents
Technical documentation and resources
No documents available
