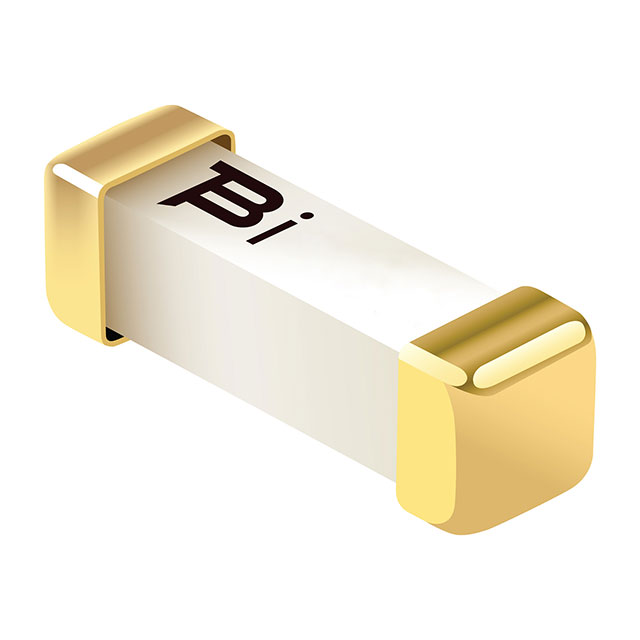

SF-3812F3500T-2

Active

Bourns Inc.

FUSE BRD MT 35A 250VAC/80DC 2SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

SF-3812F3500T-2

Active

Bourns Inc.

FUSE BRD MT 35A 250VAC/80DC 2SMD

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SF-3812F3500T-2

Approval Agency	UL, cUL
Breaking Capacity @ Rated Voltage	130 A, 100 A
Current Rating (Amps)	35 A
DC Cold Resistance	0.0014 Ohms
Fuse Type	Board Mount
Melting I˛t	1320
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	2-SMD, Square End Block
Response Time	Fast Blow
Size / Dimension [x]	10.1 mm
Size / Dimension [x]	0.398 in
Size / Dimension [y]	0.122 in
Size / Dimension [y]	3.1 mm
Size / Dimension [z]	0.122 in
Size / Dimension [z]	3.1 mm
Voltage Rating - AC	250 V
Voltage Rating - DC	80 V

SF-3812 Series

Part	Package / Case	Response Time	Approval Agency	Mounting Type	Voltage Rating - AC	Current Rating (Amps)	Fuse Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Breaking Capacity @ Rated Voltage	DC Cold Resistance	Melting I˛t	Melting I²t	Voltage Rating - DC
Bourns Inc. SF-3812TL075T-2	2-SMD Square End Block	Slow Blow	UL	Surface Mount	250 V	750 mA	Board Mount	10.1 mm	0.398 in	0.122 in	3.1 mm	0.122 in	3.1 mm	-55 °C	125 °C	50 A	0.26 Ohms	3.375
Bourns Inc. SF-3812F2000T-2	2-SMD Square End Block	Fast Blow	cUL UL	Surface Mount	250 V	20 A	Board Mount	10.1 mm	0.398 in	0.122 in	3.1 mm	0.122 in	3.1 mm	-55 °C	125 °C	100 A 130 A	0.003 Ohms		356	80 V
Bourns Inc. SF-3812F3000T-2	2-SMD Square End Block	Fast Blow	cUL UL	Surface Mount	250 V	30 A	Board Mount	10.1 mm	0.398 in	0.122 in	3.1 mm	0.122 in	3.1 mm	-55 °C	125 °C	100 A 130 A	0.0018 Ohms	900		80 V
Bourns Inc. SF-3812TL200T-2	2-SMD Square End Block	Slow Blow	TUV UL	Surface Mount	250 V	2 A	Board Mount	10.1 mm	0.398 in	0.122 in	3.1 mm	0.122 in	3.1 mm	-55 °C	125 °C	50 A		19.84
Bourns Inc. SF-3812TM125T-2	2-SMD Square End Block	Slow Blow	UL	Surface Mount	600 V	1.25 A	Board Mount	10.1 mm	0.398 in	0.122 in	3.1 mm	0.122 in	3.1 mm	-55 °C	125 °C	50 A 60 A	0.1 Ohms		22	250 V
Bourns Inc. SF-3812TL050T-2	2-SMD Square End Block	Slow Blow	UL	Surface Mount	250 V	0.5 A	Board Mount	10.1 mm	0.398 in	0.122 in	3.1 mm	0.122 in	3.1 mm	-55 °C	125 °C	50 A	0.5479 Ohms	1.963
Bourns Inc. SF-3812F1000T-2	2-SMD Square End Block	Fast Blow	cUL UL	Surface Mount	250 V	10 A	Board Mount	10.1 mm	0.398 in	0.122 in	3.1 mm	0.122 in	3.1 mm	-55 °C	125 °C	100 A 130 A	0.0067 Ohms	75		80 V
Bourns Inc. SF-3812F3500T-2	2-SMD Square End Block	Fast Blow	cUL UL	Surface Mount	250 V	35 A	Board Mount	10.1 mm	0.398 in	0.122 in	3.1 mm	0.122 in	3.1 mm	-55 °C	125 °C	100 A 130 A	0.0014 Ohms	1320		80 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 4.54
		5	$ 4.38
		10	$ 4.23
		50	$ 3.29
		100	$ 2.74
		250	$ 2.66
		500	$ 2.27
		1000	$ 2.15
	Digi-Reel®	1	$ 4.54
		5	$ 4.38
		10	$ 4.23
		50	$ 3.29
		100	$ 2.74
		250	$ 2.66
		500	$ 2.27
		1000	$ 2.15
	Tape & Reel (TR)	2500	$ 1.96
Newark	Each (Supplied on Cut Tape)	1	$ 4.57
		10	$ 4.40
		25	$ 3.91
		50	$ 3.42
		100	$ 2.85
		250	$ 2.78

Description

General part information

SF-3812 Series

35 A 250 V AC 80 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, Square End Block
