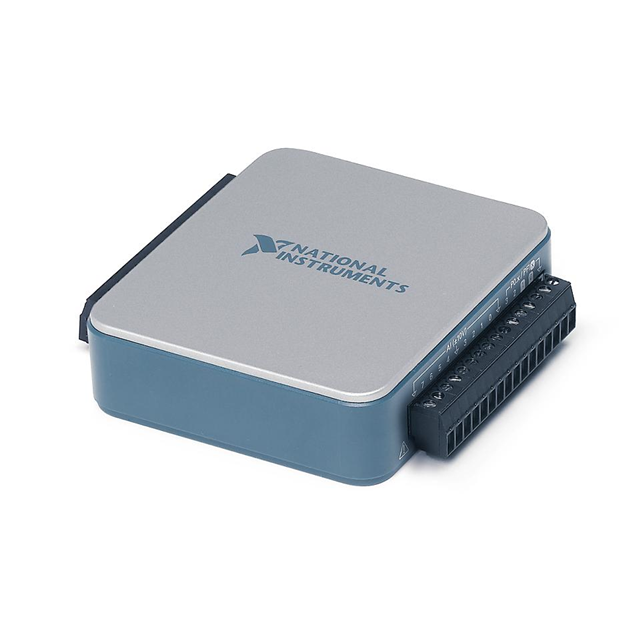

782602-01

Active

DAQ DEVICE MULTIFUNC I/O USB 2.0

Search across all available documentation for this part.

Active

DAQ DEVICE MULTIFUNC I/O USB 2.0

Technical Specifications

Parameters and characteristics for this part

Specification	782602-01

Bidirectional Channels [custom]	4
Bus Connection	USB 2.0
Counter/Timers	1
Front Connection	Screw Terminal
Function	Multifunction I/O
Input Range	10 V
Input Resolution	12 Bits
Number of Inputs and Type [custom]	4
Number of Inputs and Type [custom]	8
Number of Outputs and Type	4
Number of Outputs and Type	Digital
Type	DAQ Device

Part	Front Connection	Input Resolution	Number of Outputs and Type	Number of Outputs and Type	Function	Number of Inputs and Type [custom]	Number of Inputs and Type [custom]	Input Range	Bus Connection	Type	Counter/Timers	Bidirectional Channels [custom]
NI 782602-01	Screw Terminal	12 Bits	4	Digital	Multifunction I/O	4	8	10 V	USB 2.0	DAQ Device	1	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 285.75

General part information

Multifunction I/O DAQ Device USB 2.0 Screw Terminal

Technical documentation and resources

No documents available
