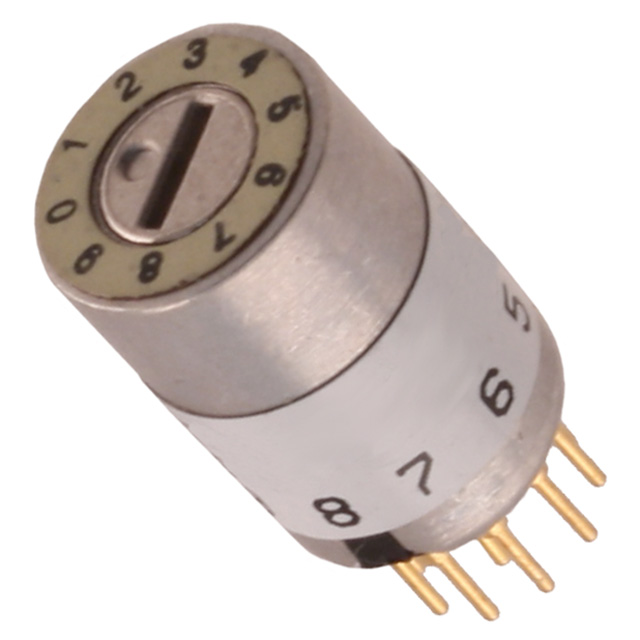

75AP36-01-2-04N
ActiveGrayhill Inc.
SWITCH ROTARY 4POS 200MA 115V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
75AP36-01-2-04N
ActiveGrayhill Inc.
SWITCH ROTARY 4POS 200MA 115V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 75AP36-01-2-04N |
|---|---|
| Actuator Length | Flush |
| Actuator Type | Screwdriver Slot |
| Angle of Throw | 36 ° |
| Circuit per Deck | DP4T |
| Contact Finish | Gold |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Contact Timing | Non-Shorting |
| Current Rating (Amps) | 200 mA |
| Depth Behind Panel [z] | 12.42 mm |
| Index Stops | Fixed |
| Mounting Type | Through Hole |
| Number of Decks [custom] | 1 |
| Number of Poles per Deck | 2 |
| Number of Positions | 4 |
| Termination Style | PC Pin |
| Voltage Rating - AC | 115 V |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 39.55 | |
Description
General part information
75AP36 Series
Rotary Switch 4 Position DP4T 200mA (AC/DC) 115 VAC Through Hole
