RPM41B7

Obsolete

SQUARE D BY SCHNEIDER ELECTRIC

POWER RELAY, 4PDT, 24VAC, 15A, SOCKET

Search across all available documentation for this part.

Obsolete

SQUARE D BY SCHNEIDER ELECTRIC

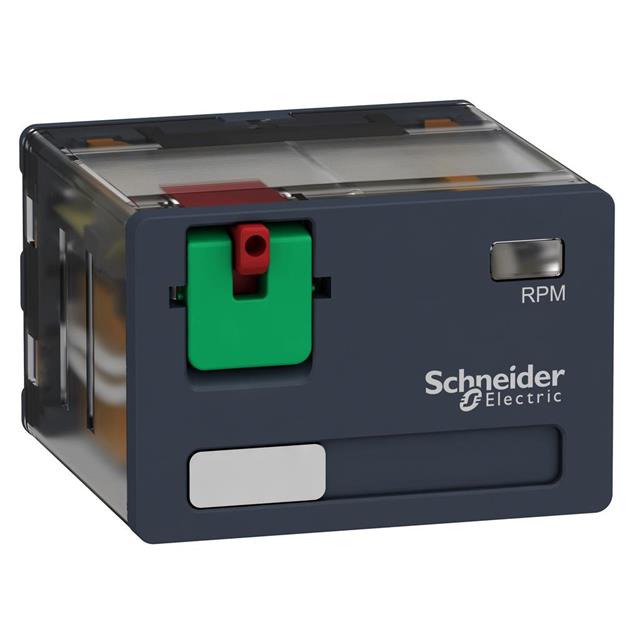

POWER RELAY, 4PDT, 24VAC, 15A, SOCKET

Technical Specifications

Parameters and characteristics for this part

Part	Operate Time	Coil Current	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Load - Max Switching	Contact Rating (Current)	Switching Voltage	Contact Form	Coil Voltage	Features	Relay Type	Must Operate Voltage	Must Release Voltage	Coil Resistance	Coil Type	Contact Material	Release Time	Mounting Type	Termination Style
SQUARE D BY SCHNEIDER ELECTRIC RPM41ED	20 ms	39.7 mA	CSA EAC UL	-40 °C	55 °C	420 W 3750 VA	15 A	28 VDC 250 VAC	4PDT (4 Form C)	48 VDC	Test Button	General Purpose	38.4 VDC	4.8 VDC	1.21 kOhms	Non Latching	Silver Nickel (AgNi)	20 ms	Socketable	Plug In
SQUARE D BY SCHNEIDER ELECTRIC RPM41BD	20 ms	79.2 mA	CSA EAC UL	-40 °C	55 °C	420 W 3750 VA	15 A	28 VDC 250 VAC	4PDT (4 Form C)	24 VDC	Lighted Indicator	General Purpose	19.2 VDC	2.4 VDC	303 Ohms	Non Latching	Silver Nickel (AgNi)	20 ms	Socketable	Plug In
SQUARE D BY SCHNEIDER ELECTRIC RPM41B7	20 ms	300 mA	CSA EAC UL	-40 °C	55 °C	420 W 3750 VA	15 A	28 VDC 250 VAC	4PDT (4 Form C)	24 VAC	Test Button	General Purpose	19.2 VAC	3.6 VAC	80 Ohms	Non Latching	Silver Nickel (AgNi)	20 ms	Socketable	Plug In
SQUARE D BY SCHNEIDER ELECTRIC RPM41JD	20 ms	158.3 mA	CSA EAC UL	-40 °C	55 °C	420 W 3750 VA	15 A	28 VDC 250 VAC	4PDT (4 Form C)	12 VDC	Test Button	General Purpose	9.6 VDC	1.2 VDC	75.8 Ohms	Non Latching	Silver Nickel (AgNi)	20 ms	Socketable	Plug In

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay 4PDT (4 Form C) 24VAC Coil Socketable
