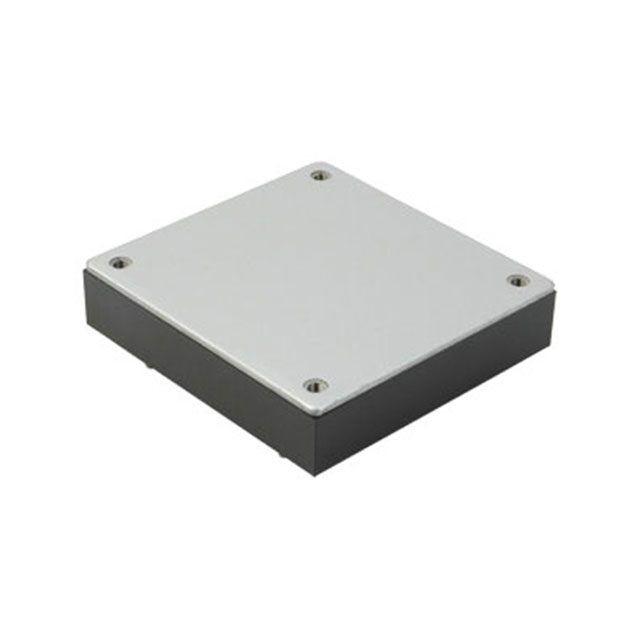

VHB200W-Q24-S5

Active

CUI Inc.

DC DC CONVERTER 5V 200W

Deep-Dive with AI

Search across all available documentation for this part.

VHB200W-Q24-S5

Active

CUI Inc.

DC DC CONVERTER 5V 200W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VHB200W-Q24-S5

Applications	ITE (Commercial)
Approval Agency	UL, EN
Control Features	Active High, Enable
Current - Output (Max) [Max]	40 A
Efficiency	87 %
Features	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Package / Case	9-DIP Module
Power (Watts)	200 W
Size / Dimension [x]	2.4 in
Size / Dimension [x]	61 mm
Size / Dimension [y]	2.28 in
Size / Dimension [y]	57.9 mm
Size / Dimension [z]	13.2 mm
Size / Dimension [z]	0.52 "
Standard Number	55024, 60950-1, 55032 Class A
Supplier Device Package	Half Brick
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	10 VDC
Voltage - Isolation	1.5 kV
Voltage - Output 1	5 V

VHB200W Series

Part	Number of Outputs	Voltage - Output 1	Package / Case	Current - Output (Max) [Max]	Efficiency	Control Features	Standard Number	Mounting Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Type	Voltage - Input (Max) [Max]	Approval Agency	Voltage - Isolation	Power (Watts)	Applications	Voltage - Input (Min) [Min]	Features	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package
CUI Inc. VHB200W-Q48-S12	1	12 V	9-DIP Module	16.7 A	88 %	Active High Enable	55024 55032 Class A 60950-1	Through Hole	2.4 in	13.2 mm	2.28 in	57.9 mm	61 mm	0.52 "	Isolated Module	75 V	EN UL	1.5 kV	200 W	ITE (Commercial)	18 V	OCP OTP OVP Remote On/Off SCP UVLO	100 °C	-40 °C
CUI Inc. VHB200W-Q24-S15	1	15 V	9-DIP Module	13.3 A	86 %	Active High Enable	55024 55032 Class A 60950-1	Through Hole	2.4 in	13.2 mm	2.28 in	57.9 mm	61 mm	0.52 "	Isolated Module	36 V	EN UL	1.5 kV	200 W	ITE (Commercial)	10 VDC	OCP OTP OVP Remote On/Off SCP UVLO	100 °C	-40 °C	Half Brick
CUI Inc. VHB200W-Q48-S24	1	24 V	9-DIP Module	8.3 A	88 %	Active High Enable	55024 55032 Class A 60950-1	Through Hole	2.4 in	13.2 mm	2.28 in	57.9 mm	61 mm	0.52 "	Isolated Module	75 V	EN UL	1.5 kV	200 W	ITE (Commercial)	18 V	OCP OTP OVP Remote On/Off SCP UVLO	100 °C	-40 °C
CUI Inc. VHB200W-Q48-S15	1	15 V	9-DIP Module	13.3 A	88 %	Active High Enable	55024 55032 Class A 60950-1	Through Hole	2.4 in	13.2 mm	2.28 in	57.9 mm	61 mm	0.52 "	Isolated Module	75 V	EN UL	1.5 kV	200 W	ITE (Commercial)	18 V	OCP OTP OVP Remote On/Off SCP UVLO	100 °C	-40 °C
CUI Inc. VHB200W-Q24-S24	1	24 V	9-DIP Module	8.3 A	87 %	Active High Enable	55024 55032 Class A 60950-1	Through Hole	2.4 in	13.2 mm	2.28 in	57.9 mm	61 mm	0.52 "	Isolated Module	36 V	EN UL	1.5 kV	200 W	ITE (Commercial)	10 VDC	OCP OTP OVP Remote On/Off SCP UVLO	100 °C	-40 °C	Half Brick
CUI Inc. VHB200W-Q24-S3R3	1	3.3 V	9-DIP Module	50 A	87 %	Active High Enable	55024 55032 Class A 60950-1	Through Hole	2.4 in	13.2 mm	2.28 in	57.9 mm	61 mm	0.52 "	Isolated Module	36 V	EN UL	1.5 kV		ITE (Commercial)	10 VDC	OCP OTP OVP Remote On/Off SCP	100 °C	-40 °C	Half Brick
CUI Inc. VHB200W-Q24-S5	1	5 V	9-DIP Module	40 A	87 %	Active High Enable	55024 55032 Class A 60950-1	Through Hole	2.4 in	13.2 mm	2.28 in	57.9 mm	61 mm	0.52 "	Isolated Module	36 V	EN UL	1.5 kV	200 W	ITE (Commercial)	10 VDC	OCP OTP OVP Remote On/Off SCP UVLO	100 °C	-40 °C	Half Brick
CUI Inc. VHB200W-Q48-S28	1	28 V	9-DIP Module	7.14 A	88 %	Active High Enable	55024 55032 Class A 60950-1	Through Hole	2.4 in	13.2 mm	2.28 in	57.9 mm	61 mm	0.52 "	Isolated Module	75 V	EN UL	1.5 kV	200 W	ITE (Commercial)	18 V	OCP OTP OVP Remote On/Off SCP UVLO	100 °C	-40 °C
CUI Inc. VHB200W-Q48-S3R3	1	3.3 V	Half Brick	40 A	88 %		55024 55032 Class A 60950-1	Through Hole	2.4 in	13.2 mm	2.28 in	57.9 mm	61 mm	0.52 "	Isolated Module	75 V	EN UL	1.5 kV	132 W	ITE (Commercial)	18 V	OCP OTP OVP Remote On/Off SCP	100 °C	-40 °C	Half Brick
CUI Inc. VHB200W-Q24-S12	1	12 V	9-DIP Module	16.7 A	86 %	Active High Enable	55024 55032 Class A 60950-1	Through Hole	2.4 in	13.2 mm	2.28 in	57.9 mm	61 mm	0.52 "	Isolated Module	36 V	EN UL	1.5 kV	200 W	ITE (Commercial)	10 VDC	OCP OTP OVP Remote On/Off SCP UVLO	100 °C	-40 °C	Half Brick

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 183.27
		5	$ 180.32
		10	$ 177.36
		48	$ 159.63

Description

General part information

VHB200W Series

Isolated Module DC DC Converter 1 Output 5V 40A 10V - 36V Input
