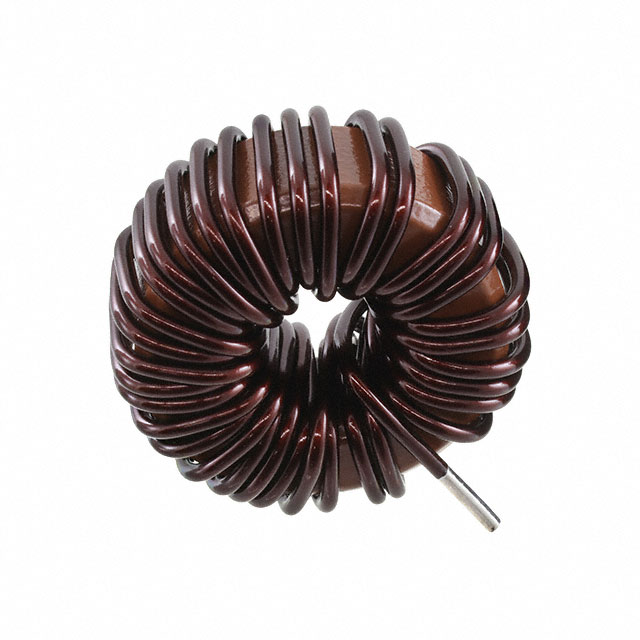

HHBC24W-2R4A0174V

Active

KEMET

CMC 174UH 20A 2LN TH

Search across all available documentation for this part.

Active

KEMET

CMC 174UH 20A 2LN TH

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Package / Case	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	DC Resistance (DCR) (Max) [Max]	Current Rating (Max) [Max]	Number of Lines	Inductance @ Frequency	DC Resistance (DCR) (Max)
KEMET HHBC24W-2R4A0174V	Through Hole	No Base Vertical	2 Lead	125 °C	-40 °C	11.8 mOhm	20 A	2
KEMET HHBC24W-2R1B0065V	Through Hole	No Base Vertical	2 Lead	125 °C	-40 °C		30 A	2	65 µH	6.2 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

174 µH @ 100 kHz 2 Line Common Mode Choke Through Hole 20A DCR 11.8mOhm
