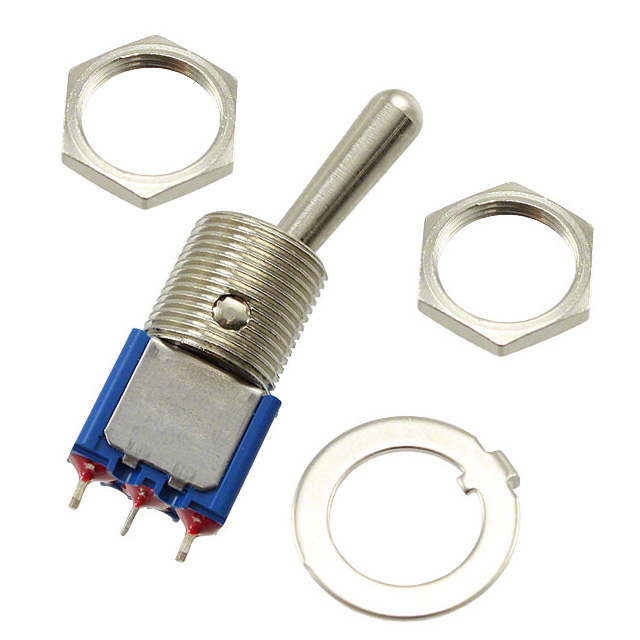

5639MAB

Active

APEM

SWITCH TOGGLE SPDT 6A 125V

Search across all available documentation for this part.

Active

APEM

SWITCH TOGGLE SPDT 6A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	5639MAB

Actuator Length [x]	17.5 mm
Actuator Material	Brass, Nickel Plated
Actuator Type	Standard Round
Bushing Thread	15/32-32
Circuit	SPDT
Current Rating (Amps)	4 A, 6 A
Electrical Life	50000 Cycles
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	12.5 mm
Switch Function	On-Off-On
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Switch Function	Current Rating (Amps)	Termination Style	Actuator Type	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Electrical Life	Bushing Thread	Illumination	Circuit	Actuator Material	Panel Cutout Dimensions [diameter]	Actuator Length [x]	Features
APEM 5639MAB	On-Off-On	4 A 6 A	Solder Lug	Standard Round	30 V	85 °C	-40 °C	125 V	50000 Cycles	15/32-32	Non-Illuminated	SPDT	Brass Nickel Plated	12.5 mm	17.5 mm	Epoxy Sealed Terminals

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPDT Panel Mount
