ActiveMill-Max Manufacturing Corp.

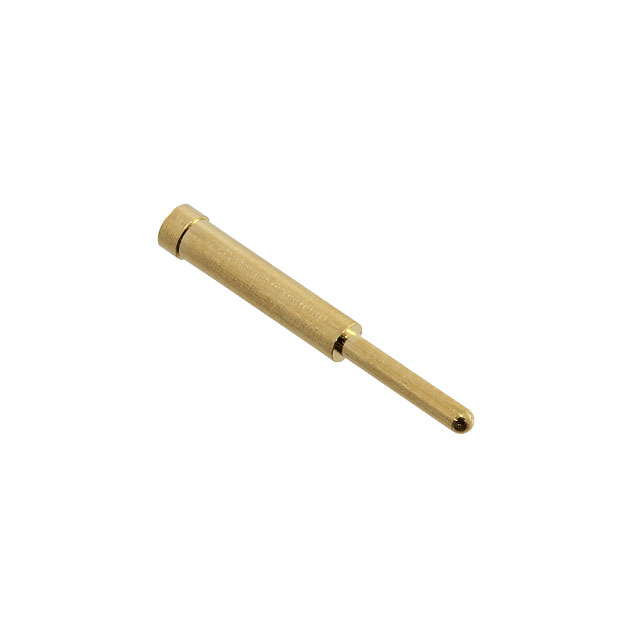

CONN PIN RCPT .037-.043 SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
0319-0-15-15-18-27-04-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT .037-.043 SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0319-0-15-15-18-27-04-0 |
|---|---|
| Accepts Pin Diameter [Max] | 0.043 in |
| Accepts Pin Diameter [Max] | 1.09 mm |
| Accepts Pin Diameter [Min] | 0.037 in |
| Accepts Pin Diameter [Min] | 0.94 mm |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Beryllium Copper |
| Flange Diameter [diameter] | 0.078 in |
| Flange Diameter [diameter] | 1.98 mm |
| Length - Overall [x] | 14.88 mm |
| Length - Overall [x] | 0.586 in |
| Mounting Hole Diameter [diameter] | 0.042 in |
| Mounting Hole Diameter [diameter] | 1.07 mm |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pin Hole Diameter [diameter] | 1.37 mm |
| Pin Hole Diameter [diameter] | 0.054 in |
| Socket Depth | 0.2 in |
| Socket Depth | 5.08 mm |
| Tail Diameter | 1.02 mm |
| Tail Diameter [diameter] | 0.04 " |
| Tail Type | Standard Tail |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.75 | |
| 10 | $ 0.65 | |||
| 25 | $ 0.60 | |||
| 50 | $ 0.56 | |||
| 100 | $ 0.54 | |||
| 250 | $ 0.49 | |||
| 500 | $ 0.47 | |||
| 1000 | $ 0.39 | |||
| 2500 | $ 0.35 | |||
Description
General part information
0319-0 Series
Pin Receptacle Connector 0.037" ~ 0.043" (0.94mm ~ 1.09mm) Standard Tail Solder
Documents
Technical documentation and resources
No documents available
