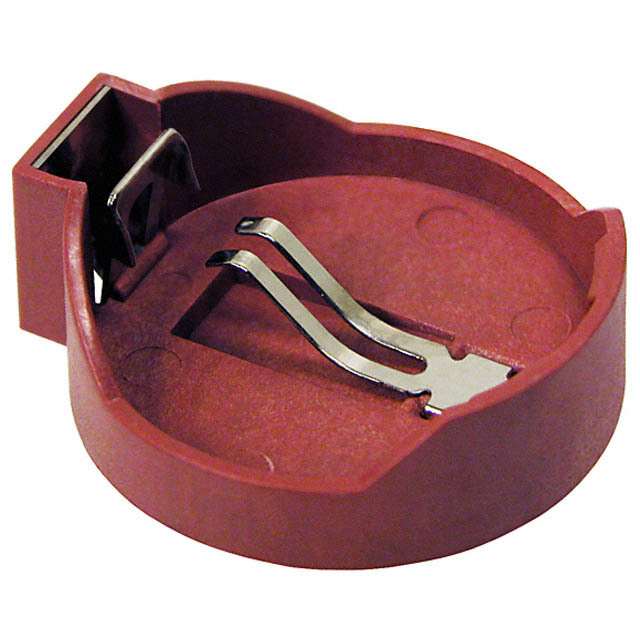

BS-7-RED
ActiveMPD (Memory Protection Devices)
BATTERY HOLDER COIN 20MM PC PIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsCoin Cell Guide
BS-7-RED
ActiveMPD (Memory Protection Devices)
BATTERY HOLDER COIN 20MM PC PIN
Deep-Dive with AI
DocumentsCoin Cell Guide
Technical Specifications
Parameters and characteristics for this part
| Specification | BS-7-RED |
|---|---|
| Battery Cell Size | Coin |
| Battery Cell Size | 20 mm |
| Battery Series | 2032 |
| Battery Type, Function | Holder, Coin Cell |
| Height Above Board [z] | 0.303 in |
| Height Above Board [z] | 7.7 mm |
| Number of Cells | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Style | Holder (Open) |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.17 | |
| 10 | $ 0.99 | |||
| 50 | $ 0.87 | |||
| 100 | $ 0.82 | |||
| 300 | $ 0.75 | |||
| 500 | $ 0.71 | |||
| 1000 | $ 0.66 | |||
| 2500 | $ 0.60 | |||
| 5000 | $ 0.55 | |||
Description
General part information
BS-7 Series
Battery Holder (Open) Coin, 20.0mm 1 Cell PC Pin
