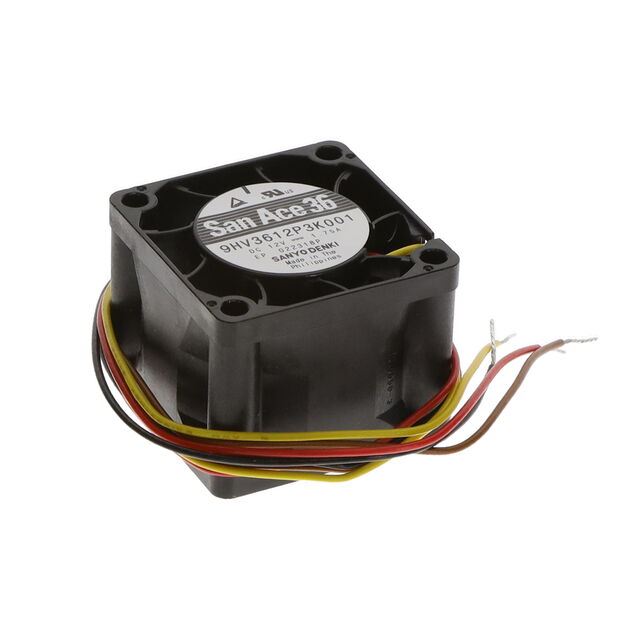

9HV3612P3K001

Active

Sanyo Denki America Inc.

FAN AXIAL 36X28MM 12VDC WIRE

Search across all available documentation for this part.

Active

Sanyo Denki America Inc.

FAN AXIAL 36X28MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	9HV3612P3K001

Air Flow	25.4 CFM
Air Flow	0.711 m³/min
Bearing Type	Ball
Current Rating (Amps)	1.75 A
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), PWM Control
Material - Blade	Plastic
Material - Frame	Plastic
Noise	67 dB
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	21 W
RPM	32500 RPM
Size / Dimension [x]	36 mm
Size / Dimension [z]	36 mm
Static Pressure	1400 Pa
Static Pressure	5.62 in H2O
Termination	4 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	10.8 VDC
Weight	0.117 lb
Weight	53.07 g
Width [y]	28 mm

Part	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Material - Blade	Static Pressure	Static Pressure	Size / Dimension [x]	Size / Dimension [z]	Power (Watts)	Material - Frame	Features	RPM	Current Rating (Amps)	Noise	Weight	Weight	Voltage - Rated	Width [y]	Termination	Fan Type	Air Flow	Air Flow	Bearing Type	Voltage Range [Max]	Voltage Range [Min]
Sanyo Denki America Inc. 9HV3612P3K001	60 °C	-20 °C	-20 C	60 °C	Plastic	1400 Pa	5.62 in H2O	36 mm	36 mm	21 W	Plastic	PWM Control Speed Sensor (Tach)	32500 RPM	1.75 A	67 dB	0.117 lb	53.07 g	12 VDC	28 mm	4 Wire Leads	Tubeaxial	25.4 CFM	0.711 m³/min	Ball	13.2 VDC	10.8 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 36mm L x 36mm H Ball 25.4 CFM (0.711m³/min) 4 Wire Leads
