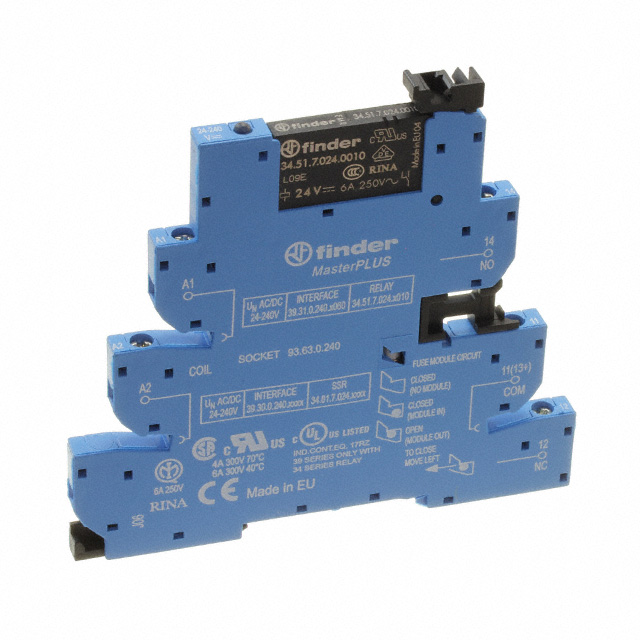

39.31.0.240.0060
ActiveFinder Relays, Inc.
RELAY GEN PURPOSE SPDT 6A 240V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
39.31.0.240.0060
ActiveFinder Relays, Inc.
RELAY GEN PURPOSE SPDT 6A 240V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 39.31.0.240.0060 |
|---|---|
| Approval Agency | RINA, EAC, cURus, CE, VDE, CSA |
| Coil Current | 19 mA |
| Coil Resistance | 12.6 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 240 VDC, 240 VAC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 6 A |
| Load - Max Switching [Max] | 2400 VA |
| Mounting Type | DIN Rail |
| Must Release Voltage | 2.4 VAC/DC |
| Operate Time | 5 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 6 ms |
| Switching Voltage [Max] | 400 VAC |
| Termination Style | Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 33.75 | |
| 10 | $ 32.07 | |||
| 30 | $ 30.38 | |||
| 50 | $ 28.69 | |||
| 100 | $ 27.00 | |||
| 250 | $ 25.32 | |||
Description
General part information
39.31.0 Series
General Purpose Relay SPDT (1 Form C) 240VAC/DC Coil DIN Rail
Documents
Technical documentation and resources
