MURS160BJ
ActiveWeEn Semiconductors Co., Ltd
DIODE GEN PURP 600V 1A SMB
Deep-Dive with AI
Search across all available documentation for this part.
MURS160BJ
ActiveWeEn Semiconductors Co., Ltd
DIODE GEN PURP 600V 1A SMB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MURS160BJ |
|---|---|
| Current - Average Rectified (Io) | 1 A |
| Current - Reverse Leakage @ Vr | 5 µA |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction [Max] | 175 °C |

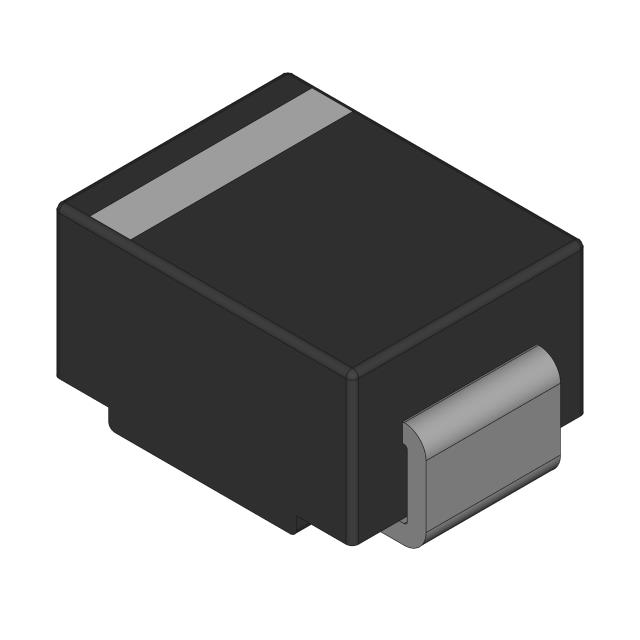

| Package / Case | SMB, DO-214AA |
| Reverse Recovery Time (trr) | 75 ns |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | SMB |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) [Max] | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.41 | |
| 10 | $ 0.29 | |||
| 100 | $ 0.15 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.10 | |||
| Digi-Reel® | 1 | $ 0.41 | ||
| 10 | $ 0.29 | |||
| 100 | $ 0.15 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.10 | |||
| Tape & Reel (TR) | 3000 | $ 0.09 | ||
| 6000 | $ 0.09 | |||
| 9000 | $ 0.08 | |||
| 30000 | $ 0.08 | |||
| 75000 | $ 0.07 | |||
| 150000 | $ 0.06 | |||
Description
General part information
MURS1 Series
Diode 600 V 1A Surface Mount SMB
Documents
Technical documentation and resources
No documents available
