1002295
ActiveKyocera AVX

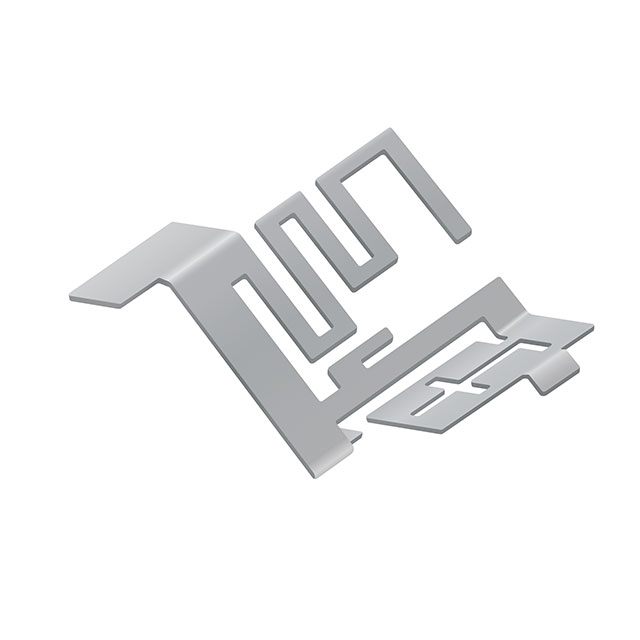

RF ANT 2.4GHZ STAMPED MET SLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1002295
ActiveKyocera AVX
RF ANT 2.4GHZ STAMPED MET SLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1002295 |
|---|---|
| Antenna Type | Stamped Metal |
| Applications | WLAN, Bluetooth, Wi-Fi, Zigbee™ |
| Frequency Range [Max] | 2.5 GHz |
| Frequency Range [Min] | 2.4 GHz |
| Gain | 2.9 dBi |
| Height (Max) | 9.7 mm |
| Height (Max) [Max] [z] | 0.382 in |
| Mounting Type | Surface Mount |
| Number of Bands | 1 |
| RF Family/Standard | WiFi, Bluetooth, 802.15.4 |
| Termination | Solder |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.94 | |
| 10 | $ 1.75 | |||
| 25 | $ 1.65 | |||
| Digi-Reel® | 1 | $ 1.94 | ||
| 10 | $ 1.75 | |||
| 25 | $ 1.65 | |||
| Tape & Reel (TR) | 150 | $ 1.03 | ||
| 300 | $ 0.95 | |||
| 450 | $ 0.90 | |||
| 750 | $ 0.85 | |||
| 1050 | $ 0.83 | |||
| 1500 | $ 0.80 | |||
Description
General part information
1002295 Series
RF ANTENNA Bluetooth, Wi-Fi, WLAN, Zigbee™ Stamped Metal Solder Surface Mount
