C0560A.38.10

Active

Prysmian Group

MULTI-PAIR 4COND 18AWG GRAY 500'

Search across all available documentation for this part.

Active

Prysmian Group

MULTI-PAIR 4COND 18AWG GRAY 500'

Technical Specifications

Parameters and characteristics for this part

Specification	C0560A.38.10

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Annealed Tinned
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.314 in
Jacket (Insulation) Diameter [diameter]	7.98 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.067 mm
Jacket (Insulation) Thickness	0.042 in
Jacket Color	Gray
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Ratings	ASTM B-33
Shield Coverage	100 %
Shield Material	Tinned, Flexfoil®, Copper
Shield Type	Foil
Usage	Control, Communication
Voltage	300 V
Wire Gauge	18 AWG

Part	Shield Coverage	Voltage	Conductor Material	Conductor Insulation	Features	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Ratings	Wire Gauge	Shield Material	Jacket (Insulation) Material	Usage	Conductor Strand [custom]	Conductor Strand [custom]	Shield Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	Length [x]	Length [x]	Number of Conductors	Length	Length
Prysmian Group C0560A.38.10	100 %	300 V	Copper Annealed Tinned	Poly-Vinyl Chloride (PVC)	Drain Wire	0.314 in	7.98 mm	Multi-Pair	ASTM B-33	18 AWG	Copper Flexfoil® Tinned	Poly-Vinyl Chloride (PVC)	Communication Control	16	30 AWG	Foil	1.067 mm	0.042 in	Gray	-20 C	105 ░C	500 '	152.4 m	4
Prysmian Group C0560A.41.10	100 %	300 V	Copper Annealed Tinned	Poly-Vinyl Chloride (PVC)	Drain Wire	0.314 in	7.98 mm	Multi-Pair	ASTM B-33	18 AWG	Copper Flexfoil® Tinned	Poly-Vinyl Chloride (PVC)	Communication Control	16	30 AWG	Foil	1.067 mm	0.042 in	Gray	-20 C	105 ░C	500 '	152.4 m	4	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25000	$ 1.14

General part information

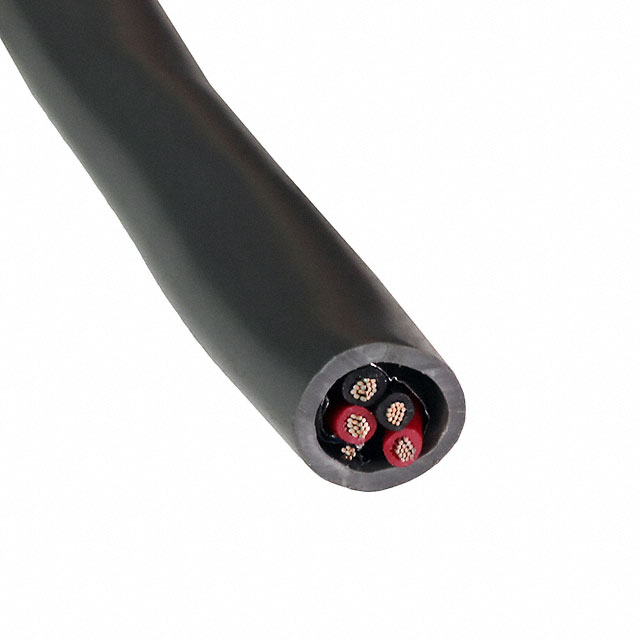

4 (2 Pair Twisted) Conductor Multi-Pair Cable Gray 18 AWG Foil 500.0' (152.4m)
