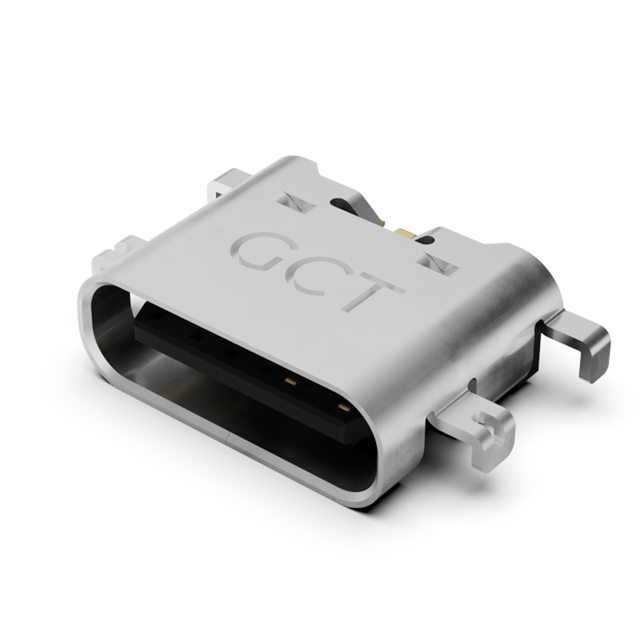

USB4515-GF-A
ActiveUSB CONNECTOR, USB TYPE C, RECEPTACLE, 6 POSITIONS, SURFACE MOUNT, THROUGH HOLE MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
USB4515-GF-A
ActiveUSB CONNECTOR, USB TYPE C, RECEPTACLE, 6 POSITIONS, SURFACE MOUNT, THROUGH HOLE MOUNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | USB4515-GF-A |
|---|---|
| Connector Type | USB-C (USB TYPE-C) |
| Contact Finish | Gold |
| Current Rating (Amps) | 3 A |
| Features | No Data, Power Only |
| Gender | Receptacle |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 10000 |
| Mounting Feature | Horizontal, Mid Mount |
| Mounting Type | Board Edge, Cutout, Through Hole, Right Angle, Surface Mount |
| Number of Contacts | 6, 18 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Shell/Shielding Material | Steel (SUS201) |
| Shielding | Shielded |
| Termination | Solder |
| Voltage - Rated | 20 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.79 | |
| 10 | $ 0.60 | |||
| 25 | $ 0.54 | |||
| 50 | $ 0.50 | |||
| 100 | $ 0.46 | |||
| 250 | $ 0.41 | |||
| 500 | $ 0.38 | |||
| Digi-Reel® | 1 | $ 0.79 | ||
| 10 | $ 0.60 | |||
| 25 | $ 0.54 | |||
| 50 | $ 0.50 | |||
| 100 | $ 0.46 | |||
| 250 | $ 0.41 | |||
| 500 | $ 0.38 | |||
| Tape & Reel (TR) | 1400 | $ 0.34 | ||
| 2800 | $ 0.32 | |||
| 4200 | $ 0.31 | |||
| 7000 | $ 0.29 | |||
| 9800 | $ 0.28 | |||
| 14000 | $ 0.27 | |||
| 35000 | $ 0.26 | |||
| Newark | Each | 1 | $ 0.63 | |
| 50 | $ 0.56 | |||
| 100 | $ 0.52 | |||
| 250 | $ 0.49 | |||
| 500 | $ 0.43 | |||
| 1000 | $ 0.40 | |||
| 1500 | $ 0.37 | |||
| 3000 | $ 0.31 | |||
Description
General part information
USB4515 Series
USB4515-GF-A is a USB Type C 2.0 SMT receptacle suitable for power charging applications only. It is offered with a 1.6mm PCB offset that enables a unique shell profile above the PCB surface of only 1.56mm to be realized. By offering marketing-leading economics, this product allows customers to future-proof their designs by changing from a legacy Micro USB to USB Type C interface without extra cost. Additionally, this product utilizes a stainless steel shell, gold flash-plated contacts over a nickel underplating, and 4-off shell stakes for additional security and retention, demonstrated by mechanical durability tested thru 10,000 mating cycles.
