09340102702

Active

HARTING Technology Group

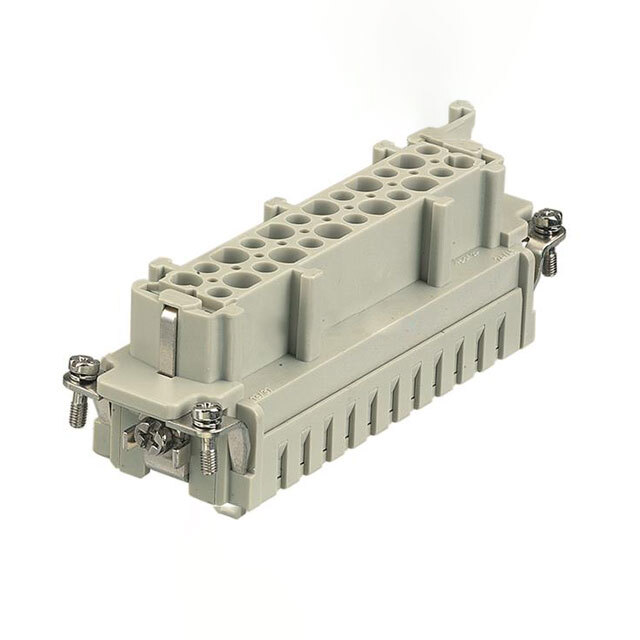

HAN HVE 10 POS. F INSERT CRIMP ROHS COMPLIANT: NA

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN HVE 10 POS. F INSERT CRIMP ROHS COMPLIANT: NA

Technical Specifications

Parameters and characteristics for this part

Specification	09340102702

Color	Gray
Connector Type	Insert without Contacts
Contact Type	Han®
Current Rating (Amps)	16 A
Gender	Female
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions [custom]	Ground
Number of Positions [custom]	10
Number of Positions [custom]	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	24 B
Termination Style	Crimp
Voltage Rating	830 V

Part	Contact Type	Gender	Termination Style	Size	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Color	Connector Type	Current Rating (Amps)	Voltage Rating	Contact Material	Contact Finish
HARTING Technology Group 09340102602	Han®	Male	Crimp	24 B	Ground	10	2	UL94 V-0	125 °C	-40 °C	Polycarbonate (PC)	Gray	Insert without Contacts	16 A	830 V
HARTING Technology Group 09340102701		Female	Screw	24 B	Ground	10	2	UL94 V-0	125 °C	-40 °C	Polycarbonate (PC)	Gray		16 A	830 V	Copper Alloy	Silver
HARTING Technology Group 09340102702	Han®	Female	Crimp	24 B	Ground	10	2	UL94 V-0	125 °C	-40 °C	Polycarbonate (PC)	Gray	Insert without Contacts	16 A	830 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Female Insert without Contacts Gray 10+2+Ground Position Crimp
