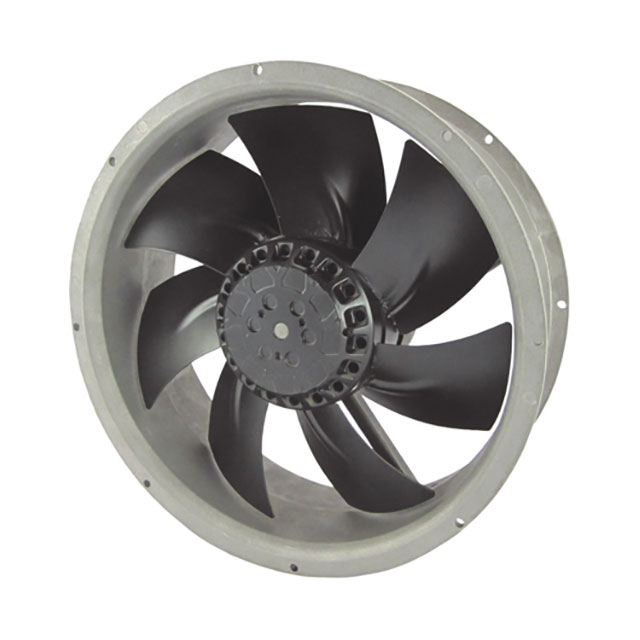

OA2547AN-11-1TB1856
ActiveOrion Fans
FAN AXIAL 254X89MM 115VAC TERM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsMetal Fans Catalog
OA2547AN-11-1TB1856
ActiveOrion Fans
FAN AXIAL 254X89MM 115VAC TERM
Deep-Dive with AI
DocumentsMetal Fans Catalog
Technical Specifications
Parameters and characteristics for this part
| Specification | OA2547AN-11-1TB1856 |
|---|---|
| Air Flow | 28 m³/min |
| Air Flow | 1000 CFM |
| Approval Agency | cURus, TUV |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Capacitor, Thermal Overload Protector (TOP) |
| Ingress Protection | IP56 - Dust Protected, Water Resistant |
| Lifetime @ Temp. | 50000 Hrs |
| Material - Blade | Metal |
| Material - Frame | Aluminum |
| Power (Watts) | 105 W |
| RPM | 3250 RPM |
| Size / Dimension | Round |
| Size / Dimension [diameter] | 10 in |
| Static Pressure | 0.6 in H2O |
| Static Pressure | 149.5 Pa |
| Termination | 2 Terminals |
| Voltage - Rated | 115 VAC |
| Voltage Range [Max] | 120 VAC |
| Voltage Range [Min] | 100 VAC |
| Weight | 5.9 lbs |
| Weight | 2.7 kg |
| Width [y] | 89 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 143.43 | |
| 12 | $ 128.91 | |||
| 30 | $ 127.09 | |||
| 54 | $ 118.92 | |||
Description
General part information
OA2547AN Series
Fan Tubeaxial 115VAC Round - 254mm Dia Ball 1000.0 CFM (28.00m³/min) 2 Terminals
