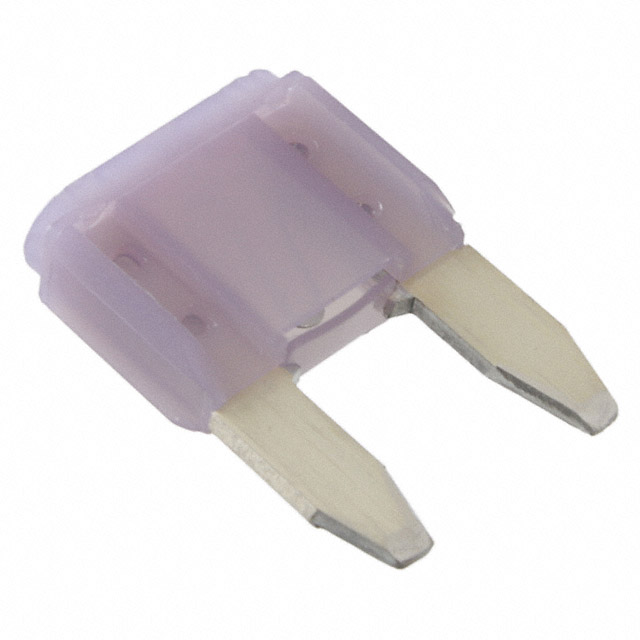

0297003.U
ActiveLittelfuse/Commercial Vehicle Products
FUSE, AUTOMOTIVE, FAST ACTING, 3 A, 32 V, MINI 297 SERIES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0297003.U |
|---|---|
| Approval Agency | UL, SAE |
| Breaking Capacity @ Rated Voltage | 1 kA |
| Color | Violet |
| Current Rating (Amps) | 3 A |
| DC Cold Resistance | 0.03375 Ohms |
| Fuse Type | Automotive |
| Melting I²t | 9.4 |
| Mounting Type | Requires Holder |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Blade, Miniature |
| Response Time | Fast Blow |
| Size / Dimension [x] | 0.429 " |
| Size / Dimension [x] | 10.9 mm |
| Size / Dimension [y] | 3.8 mm |
| Size / Dimension [y] | 0.15 " |
| Size / Dimension [z] | 8.8 mm |
| Size / Dimension [z] | 0.346 inches |
| Voltage Rating - DC | 32 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
0297003.U Series
This 3 A MINI® 32V automotive blade fuse performs reliably in adverse environments and at extreme temperatures despite its miniature design and light weight.
