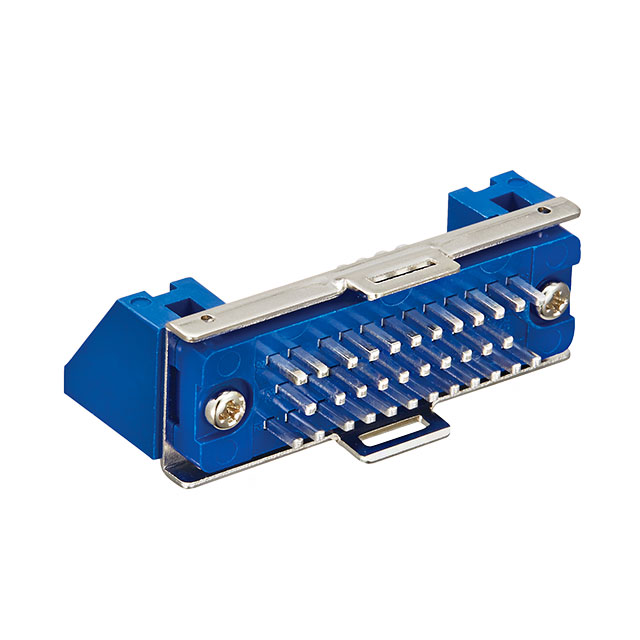

PR-1634BA-ST(50)

LTB

Hirose Electric USA, Inc.

SUMICON 1600 SERIES RECTANGULAR CONNECTORS

Search across all available documentation for this part.

LTB

Hirose Electric USA, Inc.

SUMICON 1600 SERIES RECTANGULAR CONNECTORS

Technical Specifications

Parameters and characteristics for this part

Specification	PR-1634BA-ST(50)

Connector Type	Header
Contact Finish - Mating	Silver
Contact Length - Post	3.5 mm
Contact Length - Post	0.138 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Holder
Features	Bracket
Insulation Color	Blue
Insulation Height [z]	18.5 mm
Insulation Height [z]	0.728 in
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	34
Number of Positions Loaded	All
Number of Rows	3
Shrouding	Shrouded - 2 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	300 VDC

Part	Mounting Type	Material Flammability Rating	Fastening Type	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Contact Finish - Mating	Contact Shape	Current Rating (Amps)	Voltage Rating	Termination	Features	Number of Rows	Connector Type	Insulation Color	Contact Material	Shrouding	Contact Type	Style	Number of Positions	Insulation Height [z]	Insulation Height [z]
Hirose Electric USA, Inc. PR-1634BG-STAR(59)	Through Hole Right Angle	UL94 V-0	Latch Lock	3.5 mm	0.138 in	All	Gold	Square	3 A	300 VDC	Solder	Bracket	3	Header Reverse Pin	Blue	Brass	Shrouded - 2 Wall	Male Pin	Board to Cable/Wire	34
Hirose Electric USA, Inc. PR-1634BG-STA(59)	Through Hole Right Angle	UL94 V-0	Latch Lock	3.5 mm	0.138 in	All	Gold	Square	3 A	300 VDC	Solder	Bracket	3	Header	Blue	Brass	Shrouded - 2 Wall	Male Pin	Board to Cable/Wire	34
Hirose Electric USA, Inc. PR-1634BA-ST(50)	Through Hole Right Angle	UL94 V-0	Latch Holder	3.5 mm	0.138 in	All	Silver	Square	3 A	300 VDC	Solder	Bracket	3	Header	Blue	Brass	Shrouded - 2 Wall	Male Pin	Board to Cable/Wire	34	18.5 mm	0.728 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20	$ 11.40
Newark	Each	1	$ 13.12
		260	$ 11.58

General part information

Connector Header Through Hole, Right Angle 34 position
