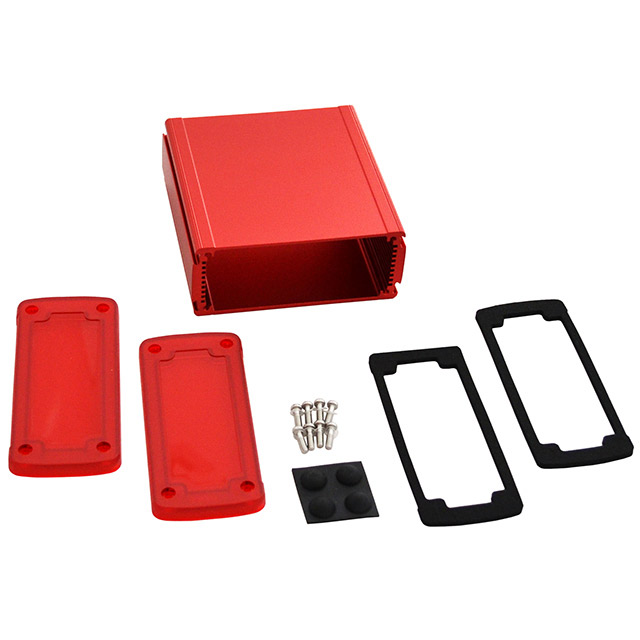

EXN-23357-RDP

Active

BUD INDUSTRIES

METAL ENCLOSURE, EXTRUDED, SMALL, EXTRUDED ALUMINUM, POLYCARBONATE, 51.6 MM, 119 MM, 115.1 MM, IP66

Search across all available documentation for this part.

Active

BUD INDUSTRIES

METAL ENCLOSURE, EXTRUDED, SMALL, EXTRUDED ALUMINUM, POLYCARBONATE, 51.6 MM, 119 MM, 115.1 MM, IP66

Technical Specifications

Parameters and characteristics for this part

Specification	EXN-23357-RDP

Area (L x W)	136 cm²
Area (L x W)	21.1 in²
Container Type	Box
Design	End Panel(s)
Features	Card Guides, Sealing Gaskets
Height [z]	51.6 mm
Height [z]	2.031 in
Material	Metal, Polycarbonate Panels, Aluminum with Plastic
Material Flammability Rating	UL94 V-0
Ratings	IP66
Size / Dimension [x]	4.685 in
Size / Dimension [x]	119 mm
Size / Dimension [y]	115.1 mm
Size / Dimension [y]	4.531 in
Thickness	0.091 in
Thickness	2.3 mm
Weight	0.62 lb
Weight	281.23 g

Part	Weight	Weight	Features	Material	Ratings	Design	Thickness	Thickness	Color	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Height [z]	Height [z]	Container Type	Area (L x W)	Area (L x W)	Material Flammability Rating
BUD INDUSTRIES EXN-23357-BL	335.66 g	0.74 lb	Card Guides Sealing Gaskets	Aluminum Metal	IP66	End Panel(s)	0.091 in	2.3 mm	Black Blue	115.1 mm	4.531 in	4.685 in	119 mm	51.6 mm	2.031 in	Box	136 cm²	21.1 in²
BUD INDUSTRIES EXN-23357-RDP	281.23 g	0.62 lb	Card Guides Sealing Gaskets	Aluminum with Plastic Metal Polycarbonate Panels	IP66	End Panel(s)	0.091 in	2.3 mm		115.1 mm	4.531 in	4.685 in	119 mm	51.6 mm	2.031 in	Box	136 cm²	21.1 in²	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Box Metal, Aluminum with Plastic, Polycarbonate Panels Infra-Red, Red End Panel(s) 4.685" L x 4.531" W (119.00mm x 115.10mm) X 2.031" (51.60mm)
