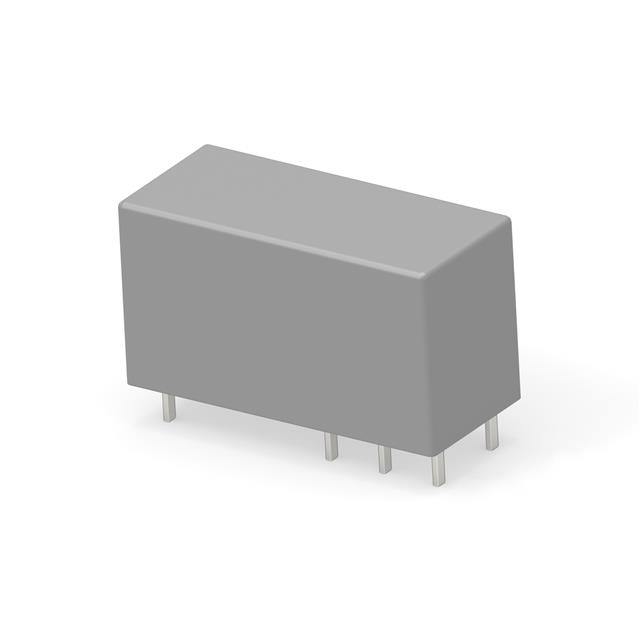

4-1415541-5

Active

TE Connectivity Potter & Brumfield Relays

RTD1LA24

Search across all available documentation for this part.

Active

TE Connectivity Potter & Brumfield Relays

RTD1LA24

Technical Specifications

Parameters and characteristics for this part

Part	Relay Type	Load - Max Switching	Coil Resistance	Coil Type	Mounting Type	Contact Material	Release Time	Switching Voltage [Max]	Approval Agency	Coil Insulation	Must Release Voltage	Seal Rating	Must Operate Voltage	Contact Rating (Current)	Operate Time	Contact Form	Termination Style	Coil Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Coil Current
TE Connectivity Potter & Brumfield Relays 9-1415541-3	General Purpose	6400 VA	32500 Ohms	Non Latching	Through Hole	Gold (Au) Silver Nickel (AgNi)	6 ms	400 VAC	CQC CSA cURus VDE	Class F	34.5 VAC	Sealed - Flux Protection	175.5 VAC	16 A	8 ms	SPST-NO (1 Form A)	PC Pin	230 VAC	-40 °C	70 °C	7.1 mA
TE Connectivity Potter & Brumfield Relays 4-1415541-5	General Purpose		1440 Ohms	Non Latching	Through Hole	Silver Tin Oxide (AgSnO)	10 ms	400 VAC		Class F		Sealed - Fully	16.8 VDC	16 A	10 ms	SPDT (1 Form C)	PC Pin	24 VDC	-40 °C	85 °C	16.7 mA
TE Connectivity Potter & Brumfield Relays 4-1415541-8	General Purpose	4800 VA	5.52 kOhms	Non Latching	Through Hole	Gold (Au) Silver Nickel (AgNi)	6 ms	400 VAC	CQC CSA cURus VDE	Class F	4.8 VDC	Sealed - Flux Protection	33.6 VDC	12 A	8 ms	SPDT (1 Form C)	PC Pin	48 VDC	-40 °C	85 °C	8.7 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 6.65

General part information

General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole
