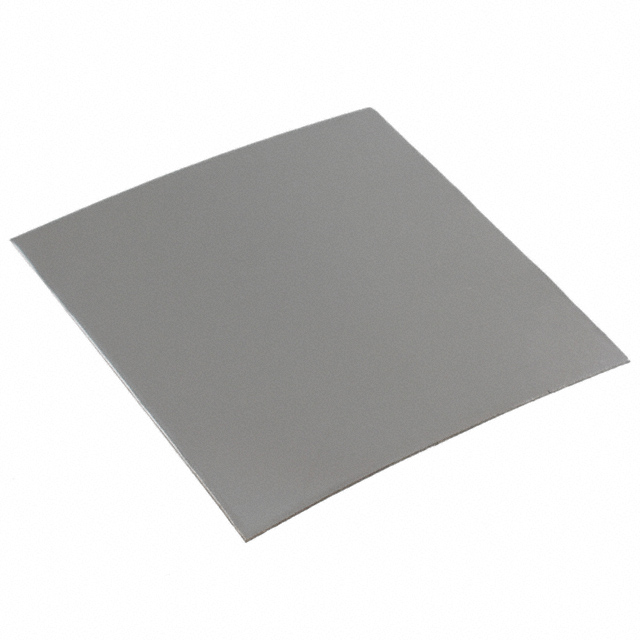

3M 1120 2"SQ-100

Active

3M (TC)

RF EMI SHLDING SHEET 2"X2" 100PK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3M 1120 2"SQ-100

Active

3M (TC)

RF EMI SHLDING SHEET 2"X2" 100PK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3M 1120 2"SQ-100

Adhesive	Conductive, Single Sided
Length	50.8 mm
Length	2 in
Material	Aluminum Foil
Shape	Rectangular
Thickness - Overall [custom]	0.004 "
Thickness - Overall [custom]	0.1 mm
Type	Shielding Sheet
Width [x]	2 in
Width [x]	50.8 mm

1120 Series

Part	Tape Type	Thickness	Thickness	Thickness	Color	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Length	Length	Length	Width	Width	Width	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive [x]	Backing, Carrier	Adhesive	Width [y]	Width [y]	Type	Shape	Thickness - Overall [custom]	Thickness - Overall [custom]	Material	Width [x]	Width [x]	Length [x]	Length [x]
3M (TC) 0.625-6-1120	Electrical	0.102 mm	4 mils	0.004 in	Silver	0.002 "	0.051 mm	2 mils	6 yds	5.5 m	18 '	0.625 in	0.63 in	16 mm	2 mils	0.051 mm	0.002 "	Aluminum Foil	Acrylic
3M (TC) 3M 1120 3/4" X 4"-100										101.6 mm	4 in								Conductive Single Sided	0.75 in	19.05 mm	Shielding Sheet	Rectangular	0.004 "	0.1 mm	Aluminum Foil
3M (TC) 1120CIR-1(250)														25.4 mm					Conductive Single Sided			Shielding Sheet	Circular	0.004 "	0.1 mm	Aluminum Foil	1 in
3M (TC) 3M 1120 2"SQ-100										50.8 mm	2 in								Conductive Single Sided			Shielding Sheet	Rectangular	0.004 "	0.1 mm	Aluminum Foil	2 in	50.8 mm
3M (TC) 10-6-1120	Electrical	0.102 mm	4 mils	0.004 in	Silver	0.002 "	0.051 mm	2 mils	6 yds	5.5 m	18 '			254 mm	2 mils	0.051 mm	0.002 "	Aluminum Foil	Acrylic								10 in
3M (TC) 3M 1120 1" X 3"-100										76.2 mm	3 in			25.4 mm					Conductive Single Sided			Shielding Sheet	Rectangular	0.004 "	0.1 mm	Aluminum Foil	1 in
3M (TC) 3M 1120 1"SQ-250														25.4 mm					Conductive Single Sided			Shielding Sheet	Square	0.004 "	0.1 mm	Aluminum Foil	1 in		1 in	25.4 mm
3M (TC) 1120-0.125-6	Electrical	0.102 mm	4 mils	0.004 in	Silver	0.002 "	0.051 mm	2 mils	6 yds	5.5 m	18 '	0.125 "	0.13 in	3.18 mm	2 mils	0.051 mm	0.002 "	Aluminum Foil	Acrylic
3M (TC) 3M 1120 1" X 4"-100										101.6 mm	4 in			25.4 mm					Conductive Single Sided			Shielding Sheet	Rectangular	0.004 "	0.1 mm	Aluminum Foil	1 in
3M (TC) 3M 1120 3/4" X 3"-100										76.2 mm	3 in								Conductive Single Sided	0.75 in	19.05 mm	Shielding Sheet	Rectangular	0.004 "	0.1 mm	Aluminum Foil

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 58.81
		100	$ 49.54

Description

General part information

1120 Series

RF EMI Shielding Sheet 1120 Aluminum Foil Conductive, Single Sided 2.000" (50.80mm) X 2.000" (50.80mm) X 0.004" (0.10mm)
