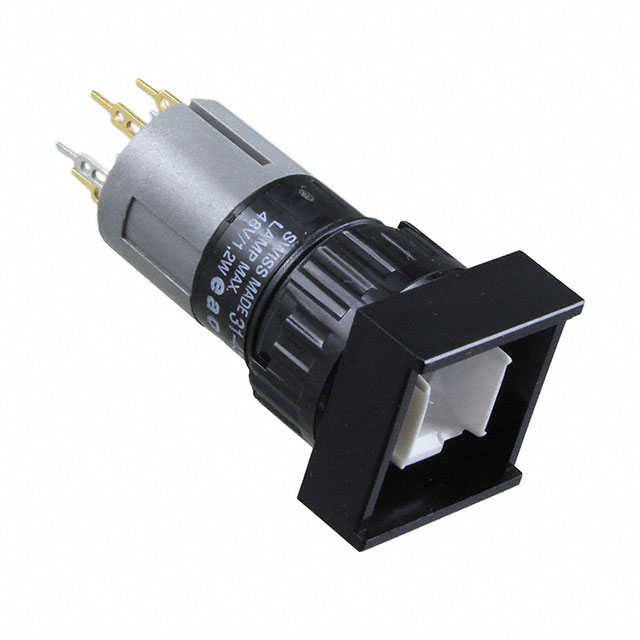

31-422.036

Active

EAO

SWITCH PB SPST-NC 0.1A 42V

Search across all available documentation for this part.

Active

EAO

SWITCH PB SPST-NC 0.1A 42V

Technical Specifications

Parameters and characteristics for this part

Specification	31-422.036

Actuator Marking	No Marking
Actuator Type	Rectangular, Button (Not Included)
Circuit	SPST-NC
Current Rating (Amps)	100 mA
Ingress Protection	IP40
Mechanical Life	5000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-Mom
Termination Style	PC Pin, Solder Lug
Type	Standard
Voltage Rating - AC	42 V
Voltage Rating - DC	42 V

Part	Circuit	Current Rating (Amps)	Type	Actuator Type	Ingress Protection	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Actuator Marking	Voltage Rating - DC	Termination Style	Switch Function
EAO 31-422.036	SPST-NC	100 mA	Standard	Rectangular Button (Not Included)	IP40	5000000 Cycles	55 °C	-25 °C	Panel Mount Front	42 V	16 mm	No Marking	42 V	PC Pin Solder Lug	On-Mom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NC Standard Panel Mount, Front
