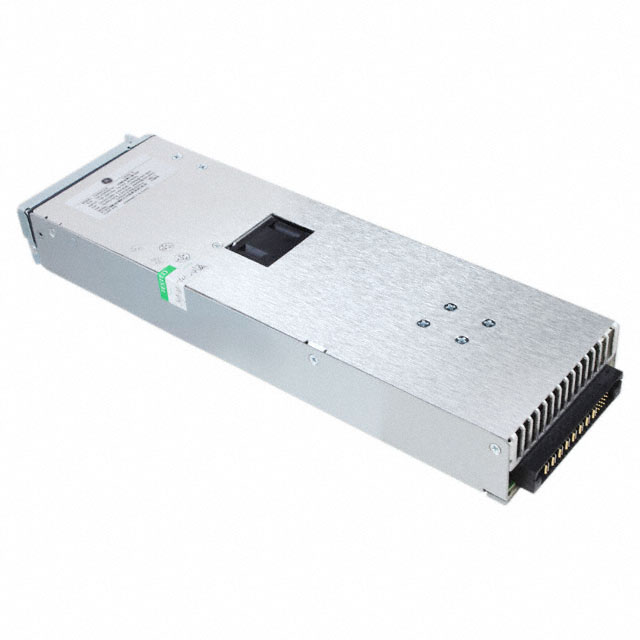

CAR2012TEBX5Z01A

Active

OmniOn Power™

AC/DC CONVERTER 12V 2000W

Search across all available documentation for this part.

Active

OmniOn Power™

AC/DC CONVERTER 12V 2000W

Technical Specifications

Parameters and characteristics for this part

Specification	CAR2012TEBX5Z01A

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output 1	167 A
Efficiency	95 %
Features	Load Sharing, PMBus™, Universal Input, Standby Output, Remote Sense, Adjustable Output, PFC, Hot Swappable, I2C Interface
Minimum Load Required	False
Mounting Type	Rack Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	2000 W
Size / Dimension [x]	12.89 in
Size / Dimension [x]	327.5 mm
Size / Dimension [y]	4 "
Size / Dimension [y]	101.6 mm
Size / Dimension [z]	1.61 "
Size / Dimension [z]	40.9 mm
Type	Front End
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Efficiency	Mounting Type	Number of Outputs	Power (Watts)	Applications	Approval Agency	Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Minimum Load Required	Voltage - Output 1	Current - Output 1	Features
OmniOn Power™ CAR2012TEBX5Z01A	-10 °C	70 °C	3000 V	95 %	Rack Mount	1	2000 W	ITE (Commercial)	CE	Front End	1.61 "	4 "	12.89 in	101.6 mm	327.5 mm	40.9 mm		12 V	167 A	Adjustable Output Hot Swappable I2C Interface Load Sharing PFC PMBus™ Remote Sense Standby Output Universal Input

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	5	$ 865.66

General part information

Front End AC DC Converters 1 Output 12V 85 ~ 264 VAC Input
