TR9CZ9470YL4CFIMR6B

Active

GlobTek, Inc.

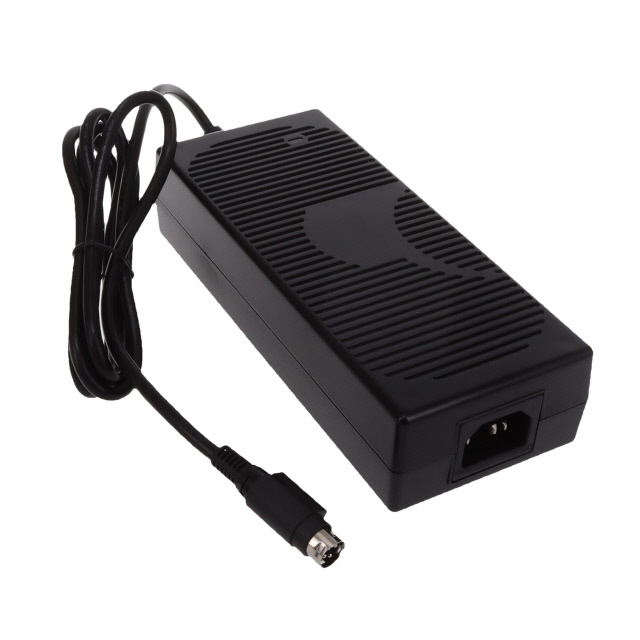

AC/DC DESKTOP ADAPTER 19V 180W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 19V 180W

Technical Specifications

Parameters and characteristics for this part

Specification	TR9CZ9470YL4CFIMR6B

Applications	Household Appliances, ITE (Commercial), Medical
Cord Length	1.2 m
Cord Length	47.2 in
Current - Output (Max) [Max]	9.47 A
Efficiency	Level VI, CoC Tier 1
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-10 °C
Output Connector	4 Pin
Output Connector	Power DIN
Power (Watts)	180 W
Region Utilized	International
Size / Dimension [x]	6.93 in
Size / Dimension [x]	176 mm
Size / Dimension [y]	2.91 "
Size / Dimension [y]	74 mm
Size / Dimension [z]	40 mm
Size / Dimension [z]	1.58 "
Standard Number	60601-1, 60335-1, 60950-1, 62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	19 V

Part	Current - Output (Max) [Max]	Cord Length	Cord Length	Output Connector	Output Connector	Voltage - Output	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Input Type	Standard Number	Voltage - Input [Min]	Voltage - Input [Max]	Region Utilized	Applications	Input Connector	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Form	No Load Power Consumption [Max]
GlobTek, Inc. TR9CZ9470YL4CFIMR6B	9.47 A	1.2 m	47.2 in	4 Pin	Power DIN	19 V	CoC Tier 1 Level VI	-10 °C	40 °C	180 W	Cord	60335-1 60601-1 60950-1 62368-1	90 VAC	264 VAC	International	Household Appliances ITE (Commercial) Medical	IEC 320-C14	40 mm	6.93 in	2.91 "	74 mm	1.58 "	176 mm	Desktop (Class I)	150 mW
GlobTek, Inc. TR9CZ9470YL4IMR6B	9.47 A	1.2 m	47.2 in	4 Pin	Power DIN	19 V	CoC Tier 2 Level VI	-10 °C	40 °C	180 W	Cord	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	90 VAC	264 VAC	International	Household Appliances ITE (Commercial) Medical	IEC 320-C14	40 mm	6.95 in	2.91 "	74 mm	1.58 "	176.5 mm	Desktop (Class I)	150 mW

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 62.50

General part information

19V 180 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
