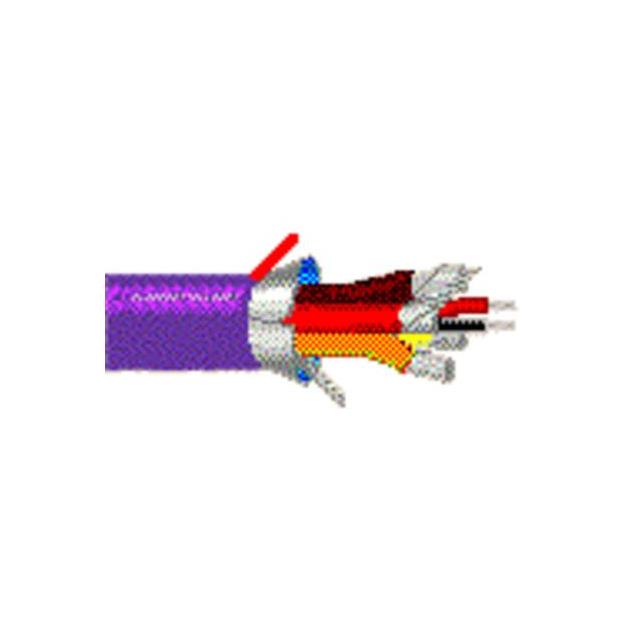

1696A B59U1000

Active

Belden Inc.

2 #22 FHDPE SHLD PVC

Search across all available documentation for this part.

Active

Belden Inc.

2 #22 FHDPE SHLD PVC

Technical Specifications

Parameters and characteristics for this part

Specification	1696A B59U1000

Cable Type	Multi-Conductor
Conductor Insulation	Foam Polyethylene (FPE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	5.97 mm
Jacket (Insulation) Diameter [diameter]	0.235 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.025 in
Jacket (Insulation) Thickness	0.635 mm
Jacket Color	Black
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-30 ░C
Shield Coverage	90 %, 100 %
Shield Material	Aluminum, Polyester, Copper, Tinned
Shield Type	Foil, Braid
Usage	Audio
Voltage	300 V
Wire Gauge	22 AWG

Part	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Insulation	Shield Coverage	Shield Type	Usage	Features	Number of Conductors	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Wire Gauge	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Material	Voltage	Length	Length	Conductor Strand [custom]	Conductor Strand [custom]
Belden Inc. 1696A B59U1000	Black	0.025 in	0.635 mm	Foam Polyethylene (FPE)	90 % 100 %	Braid Foil	Audio	Drain Wire	2	Multi-Conductor	-30 ░C	60 °C	Poly-Vinyl Chloride (PVC)	22 AWG	Copper Tinned	5.97 mm	0.235 in	Aluminum Polyester Copper Tinned	300 V	1000 ft	304.8 m	7	30 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 1.90

General part information

2 (1 Pair) Conductor Multi-Conductor Cable Black 22 AWG Foil, Braid 1000.0' (304.8m)
