Technical Specifications
Parameters and characteristics for this part
| Specification | M20-1070800 |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Insulation Material | Polyphenylene Ether (PPE), Polystyrene (PS) |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Row Spacing | 2.54 mm |
| Row Spacing [x] | 0.1 in |
M20-107 Series
| Part | Row Spacing [x] | Row Spacing | Note | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Pitch [x] | Pitch [x] | Number of Rows | Connector Type | Color | Insulation Material | Contact Type | Contact Termination | Mounting Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | 0.1 in | 2.54 mm | Contacts Not Included | -25 °C | 85 °C | 14 | 2.54 mm | 0.1 in | 2 | Receptacle | Black | Polyphenylene Ether (PPE) Polystyrene (PS) | Female Socket | Crimp | Free Hanging (In-Line) | |
Harwin Inc. | 0.1 in | 2.54 mm | Contacts Not Included | -25 °C | 85 °C | 24 | 2.54 mm | 0.1 in | 2 | Receptacle | Black | Polyphenylene Ether (PPE) Polystyrene (PS) | Female Socket | Crimp | Free Hanging (In-Line) | |
Harwin Inc. | 0.1 in | 2.54 mm | Contacts Not Included | -25 °C | 85 °C | 8 | 2.54 mm | 0.1 in | 2 | Receptacle | Black | Polyphenylene Ether (PPE) Polystyrene (PS) | Female Socket | Crimp | Free Hanging (In-Line) | |
Harwin Inc. | 0.1 in | 2.54 mm | Contacts Not Included | -25 °C | 85 °C | 6 | 2.54 mm | 0.1 in | 2 | Receptacle | Black | Polyphenylene Ether (PPE) Polystyrene (PS) | Female Socket | Crimp | Free Hanging (In-Line) | |
Harwin Inc. | 0.1 in | 2.54 mm | Contacts Not Included | -25 °C | 85 °C | 2.54 mm | 0.1 in | 2 | Receptacle | Black | Polyphenylene Ether (PPE) Polystyrene (PS) | Female Socket | Crimp | Free Hanging (In-Line) | 16 | |
Harwin Inc. | 0.1 in | 2.54 mm | Contacts Not Included | -25 °C | 85 °C | 10 | 2.54 mm | 0.1 in | 2 | Receptacle | Black | Polyphenylene Ether (PPE) Polystyrene (PS) | Female Socket | Crimp | Free Hanging (In-Line) | |
Harwin Inc. | 0.1 in | 2.54 mm | Contacts Not Included | -25 °C | 85 °C | 18 | 2.54 mm | 0.1 in | 2 | Receptacle | Black | Polyphenylene Ether (PPE) Polystyrene (PS) | Female Socket | Crimp | Free Hanging (In-Line) | |
Harwin Inc. | 0.1 in | 2.54 mm | Contacts Not Included | -25 °C | 85 °C | 22 positions | 2.54 mm | 0.1 in | 2 | Receptacle | Black | Polyphenylene Ether (PPE) Polystyrene (PS) | Female Socket | Crimp | Free Hanging (In-Line) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M20-107 Series

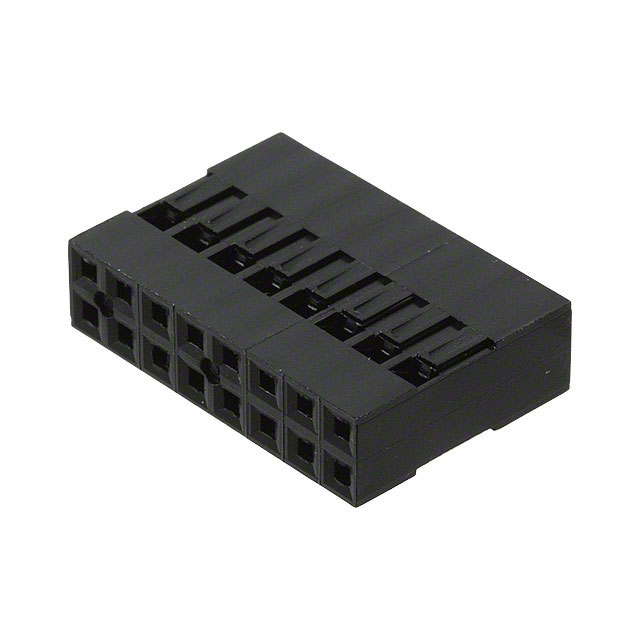

16 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)
