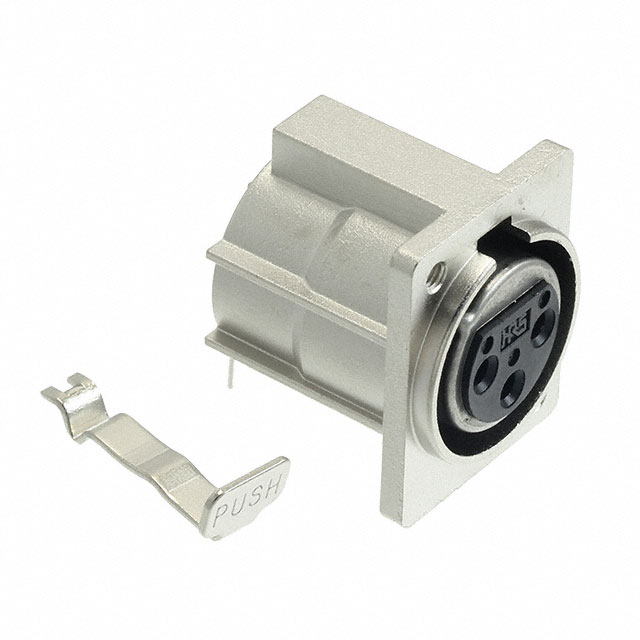

HA16PRM-3SB(71)

Obsolete

Hirose Electric USA, Inc.

CONN PLUG FMALE 3P SILVER SOLDER

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN PLUG FMALE 3P SILVER SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	HA16PRM-3SB(71)

Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	3 A
Fastening Type	Latch Lock
Features	Ground
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Mounting Type	Through Hole, Right Angle, Panel Mount
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Aluminum or Zinc Alloy
Shell Size - Insert	16
Shielding	Shielded
Termination	Solder
Voltage Rating	130 VAC, 180 VDC

Part	Features	Voltage Rating	Orientation	Shell Size - Insert	Contact Finish - Mating	Shielding	Current Rating (Amps)	Mounting Feature	Color	Shell Finish	Primary Material	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Material Flammability Rating	Contact Material	Shell Material	Fastening Type	Termination	Mounting Type
Hirose Electric USA, Inc. HA16PRM-3S(05)	Ground	130 VAC 180 VDC	Keyed	16	Silver	Shielded	15 A	Flange	Silver	Nickel	Metal	70 °C	-25 °C	Female Sockets Plug	UL94 V-0	Copper Alloy	Aluminum or Zinc Alloy	Latch Lock
Hirose Electric USA, Inc. HA16PRM-3SB(71)	Ground	130 VAC 180 VDC	Keyed	16	Silver	Shielded	3 A	Flange	Silver	Nickel	Metal	70 °C	-25 °C	Female Sockets Plug	UL94 V-0	Copper Alloy	Aluminum or Zinc Alloy	Latch Lock	Solder	Panel Mount Right Angle Through Hole
Hirose Electric USA, Inc. HA16PRM-3SG(71)		130 VAC 180 VDC	Keyed	16		Shielded	3 A	Flange	Silver	Nickel	Metal	70 °C	-25 °C	Female Sockets Plug	UL94 V-0		Aluminum or Zinc Alloy	Latch Lock
Hirose Electric USA, Inc. HA16PRM-3SB(73)	Ground	130 VAC 180 VDC	Keyed	16		Shielded	3 A	Flange	Silver	Nickel	Metal	70 °C	-25 °C	Female Sockets Plug	UL94 V-0	Copper Alloy	Aluminum or Zinc Alloy	Latch Lock	Solder	Panel Mount Right Angle Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

3 Position Circular Connector Plug, Female Sockets Solder

Technical documentation and resources

No documents available
