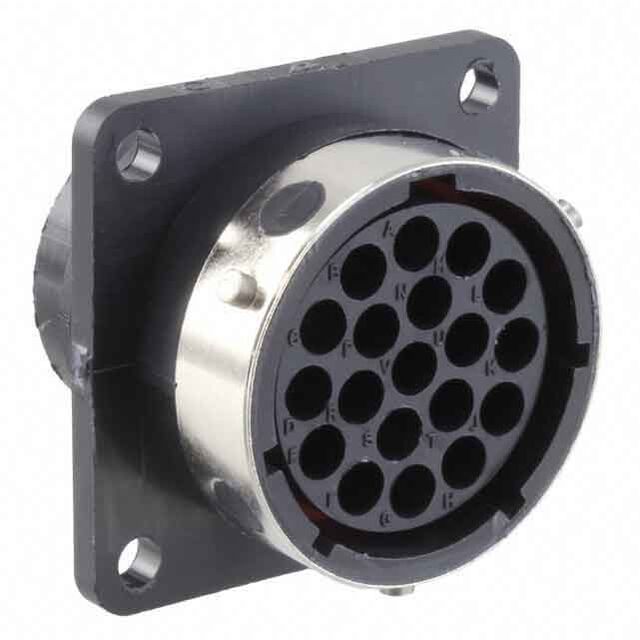

TR1619RFH1NB

Active

ITT Cannon, LLC

CIRCULAR CONNECTOR, TRIDENT RINGLOCK SERIES, RECEPTACLE, 19, SOCKET, PANEL MOUNT, 16-19 ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CIRCULAR CONNECTOR, TRIDENT RINGLOCK SERIES, RECEPTACLE, 19, SOCKET, PANEL MOUNT, 16-19 ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	TR1619RFH1NB

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Type	Solder Cup, Solder, Crimp
Fastening Type	Detent Lock
Housing Color	Black
Ingress Protection	IP65 - Dust Tight, Water Resistant
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	19
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Shell Size - Insert [Max]	19
Shell Size - Insert [Min]	16
Shielding	Unshielded
Type	For Female Sockets

Part	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Feature	Material Flammability Rating	Fastening Type	Number of Positions	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Ingress Protection	Housing Color	Note	Orientation	Shielding	Type	Contact Shape	Connector Type
ITT Cannon, LLC TR1619RFH1NB	Crimp Solder Solder Cup	105 ░C	-55 °C	Flange	UL94 V-0	Detent Lock	19	16	19	IP65 - Dust Tight Water Resistant	Black	Contacts Not Included	Keyed	Unshielded	For Female Sockets	Circular	Receptacle Housing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

19 Position Circular Connector Receptacle Housing Panel Mount
