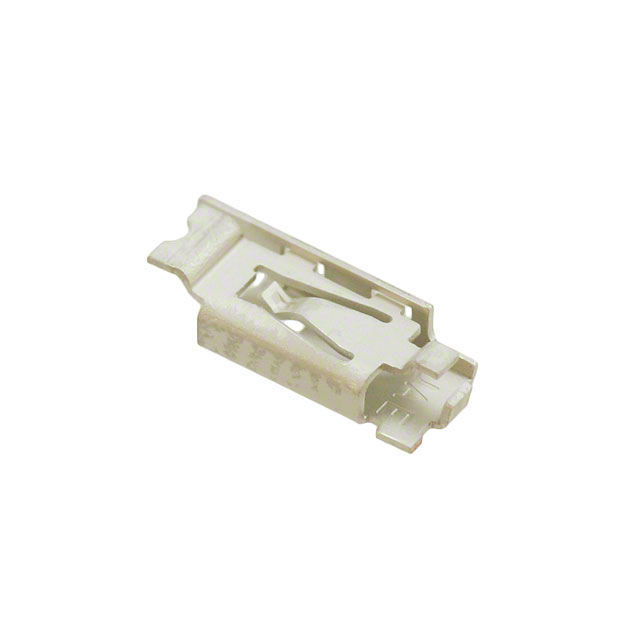

ES5S001JF1R5500
ActiveJAE Electronics
CONN SSL SOCKET CONTACT SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ES5S001JF1R5500
ActiveJAE Electronics
CONN SSL SOCKET CONTACT SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ES5S001JF1R5500 |
|---|---|
| Connector Type | Contact, Socket |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 4 A |
| Fastening Type | Latch Holder |
| Mating Cycles | 20 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Style | Board to Cable/Wire |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.56 | |
| 10 | $ 0.48 | |||
| 25 | $ 0.44 | |||
| 50 | $ 0.42 | |||
| 100 | $ 0.40 | |||
| 250 | $ 0.37 | |||
| 500 | $ 0.35 | |||
| 1000 | $ 0.29 | |||
| 2500 | $ 0.26 | |||
| Tape & Reel (TR) | 5500 | $ 0.25 | ||
| 11000 | $ 0.23 | |||
| 16500 | $ 0.23 | |||
| 27500 | $ 0.23 | |||
Description
General part information
ES5S001J Series
SSL Contact, Socket Solder Surface Mount, Right Angle
